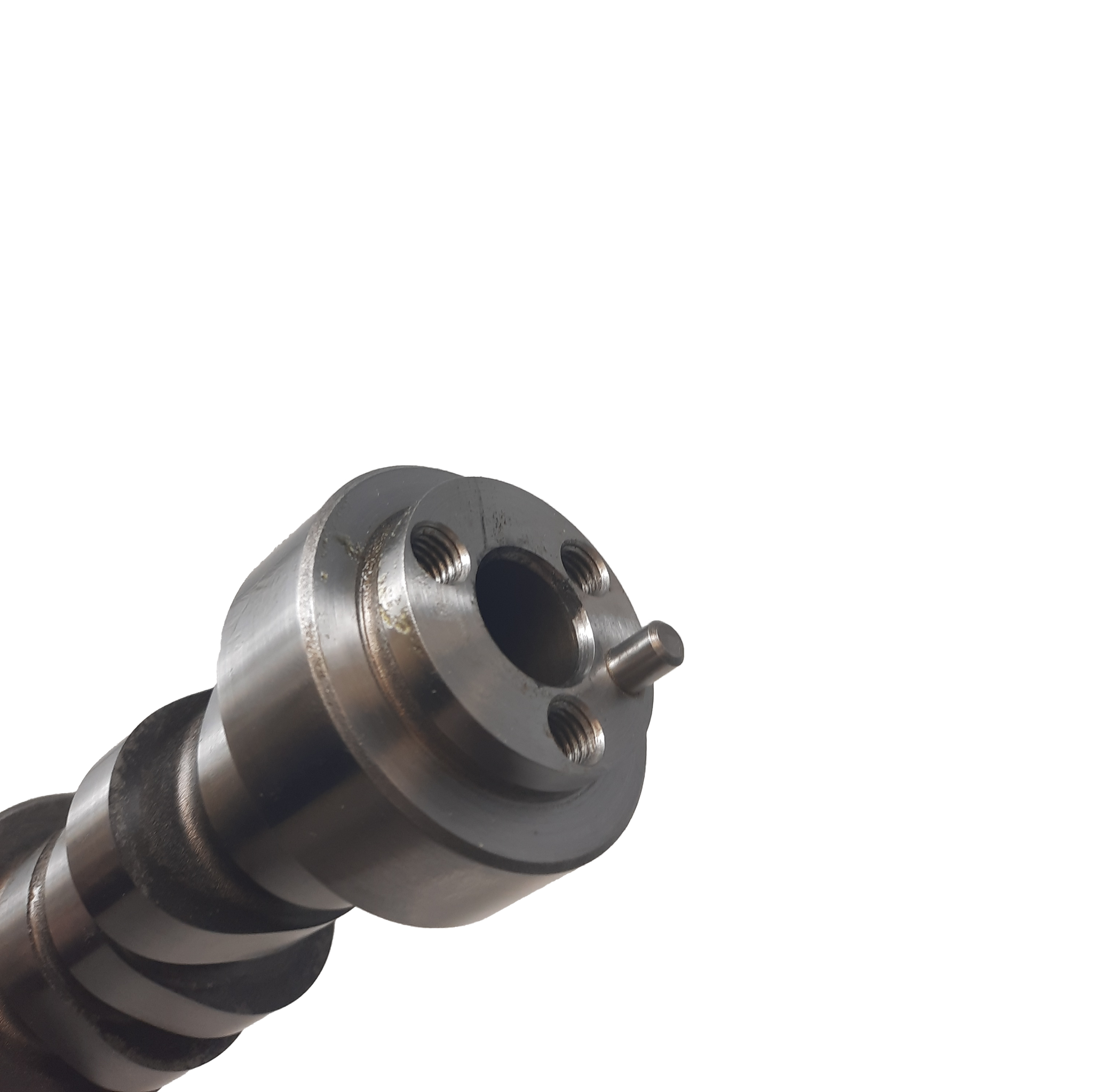

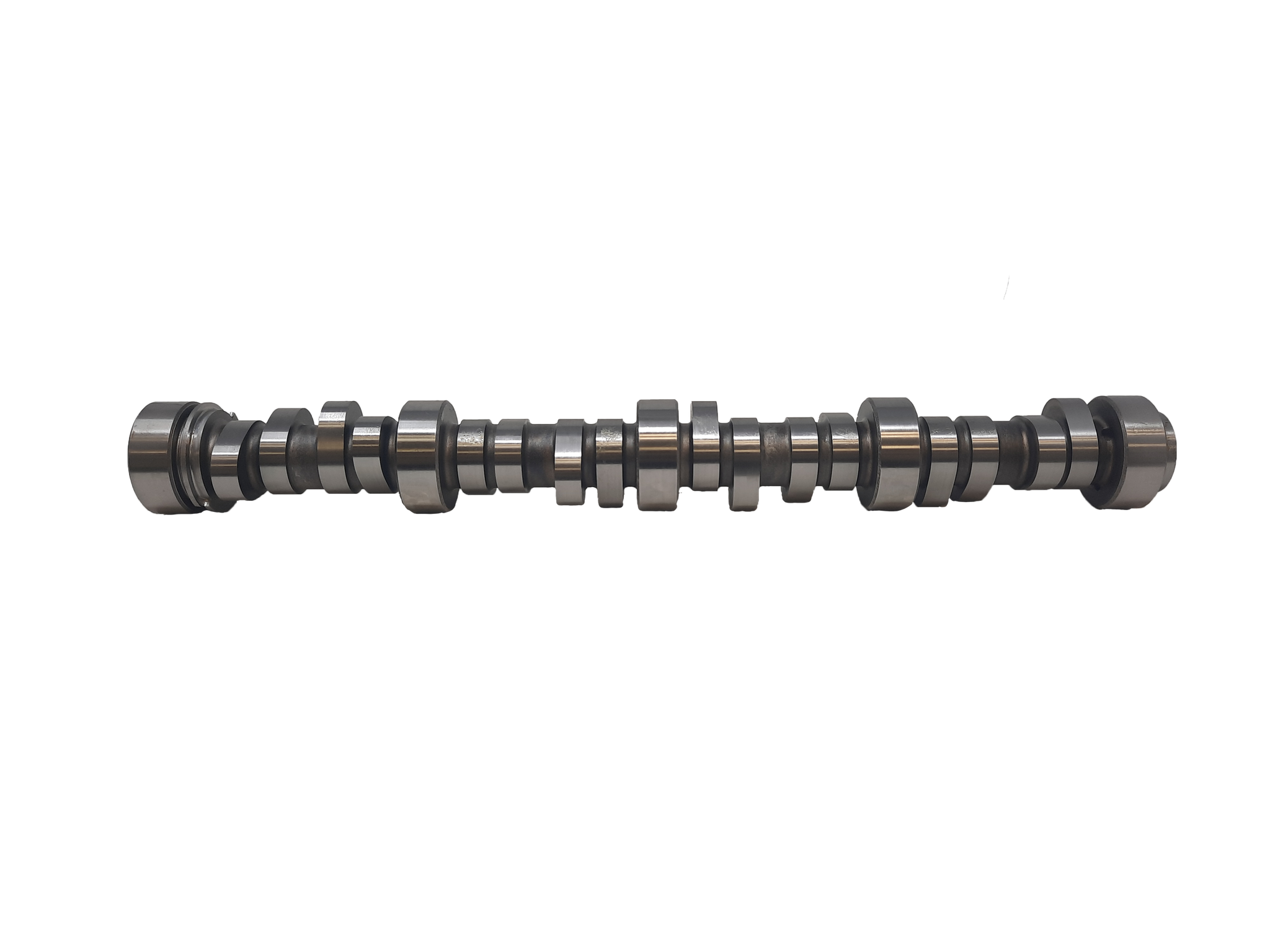

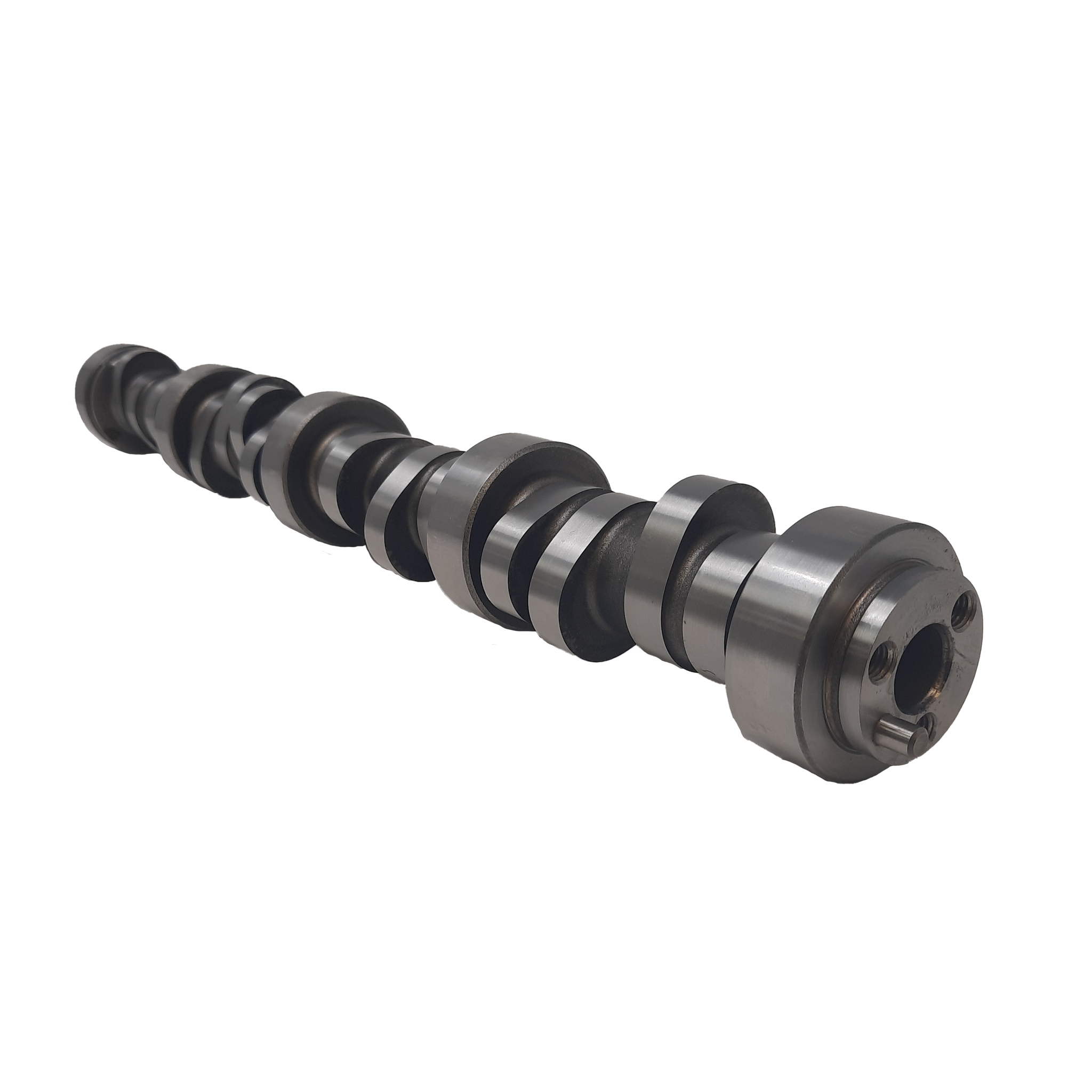

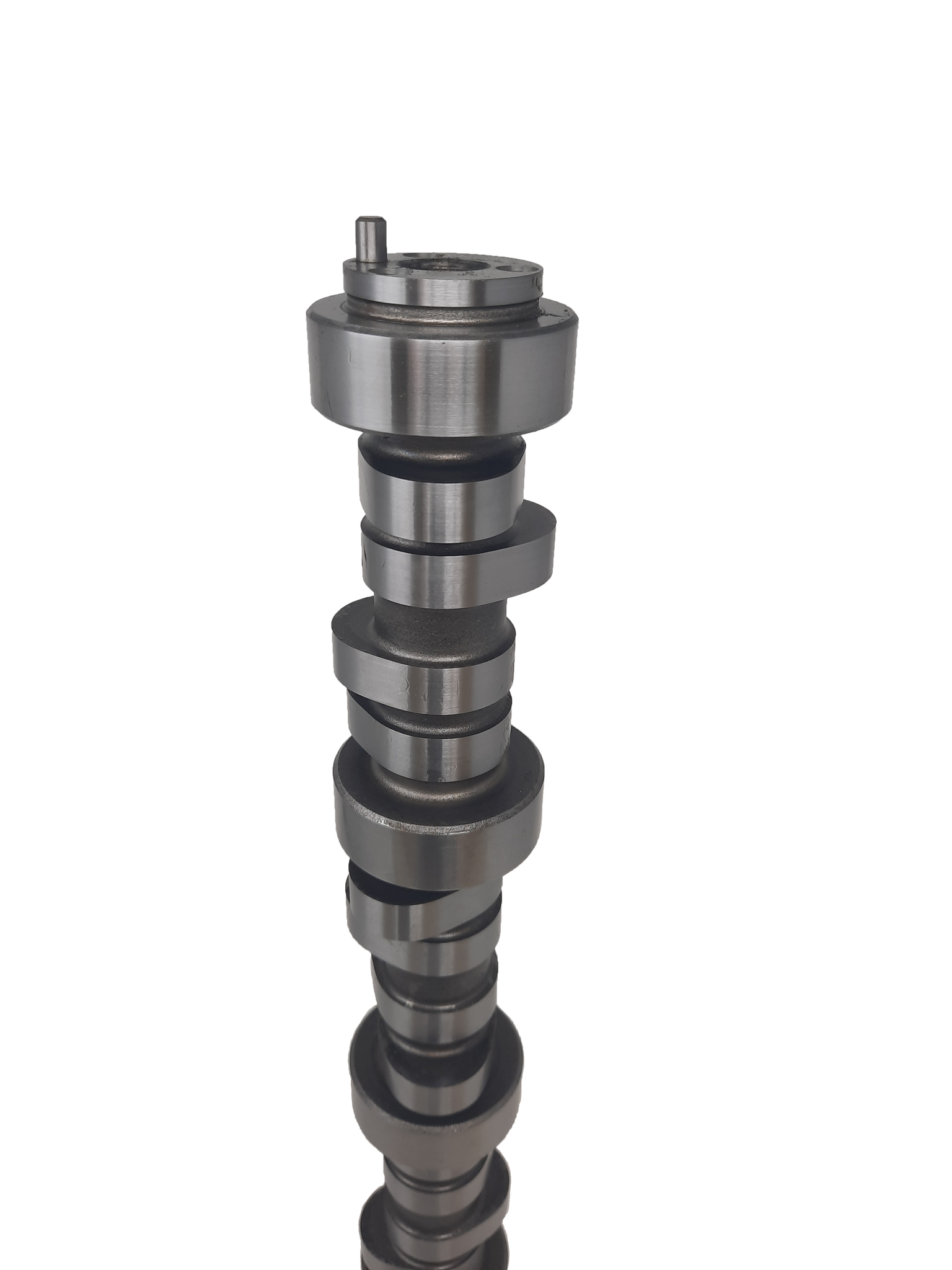

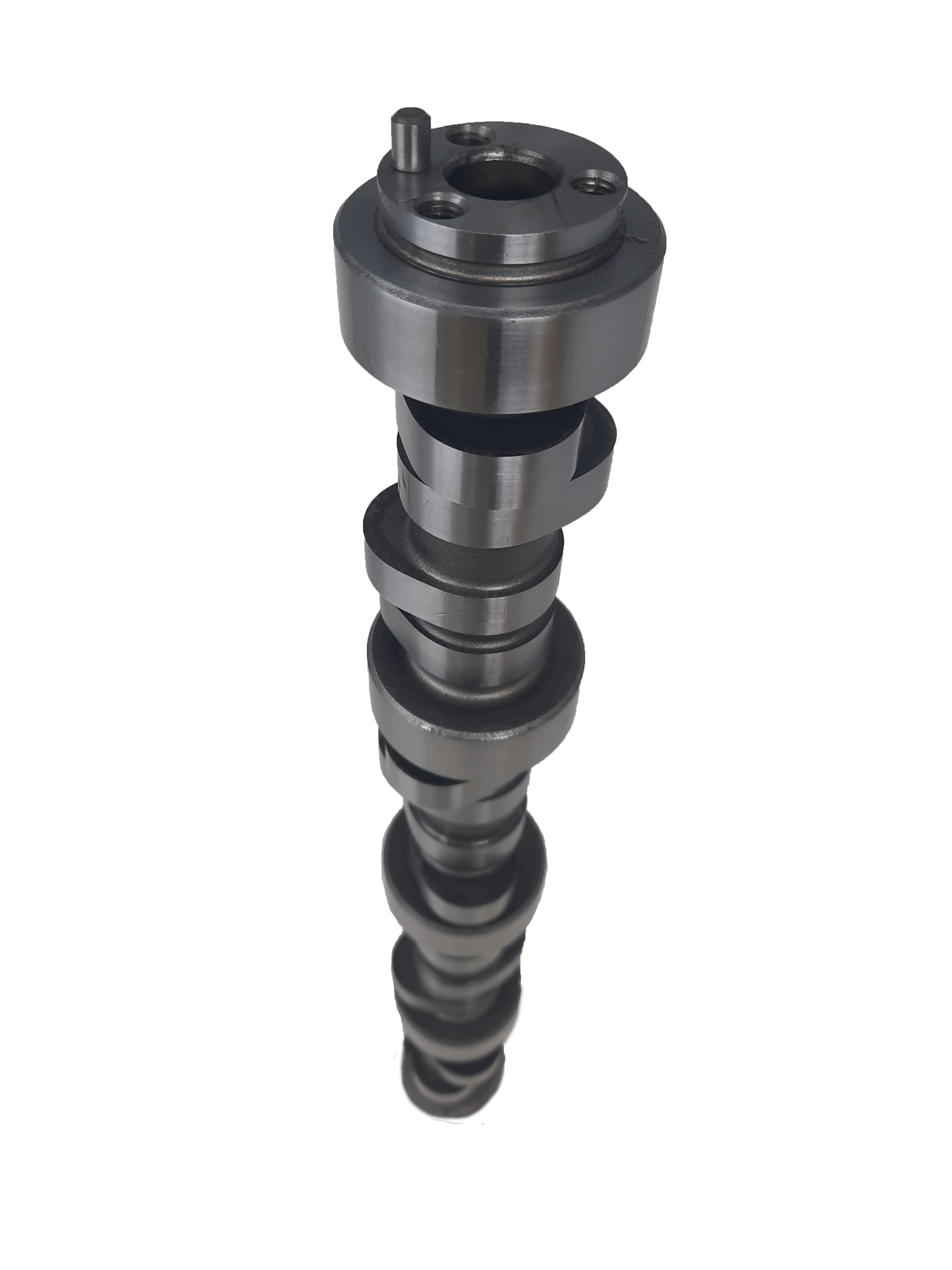

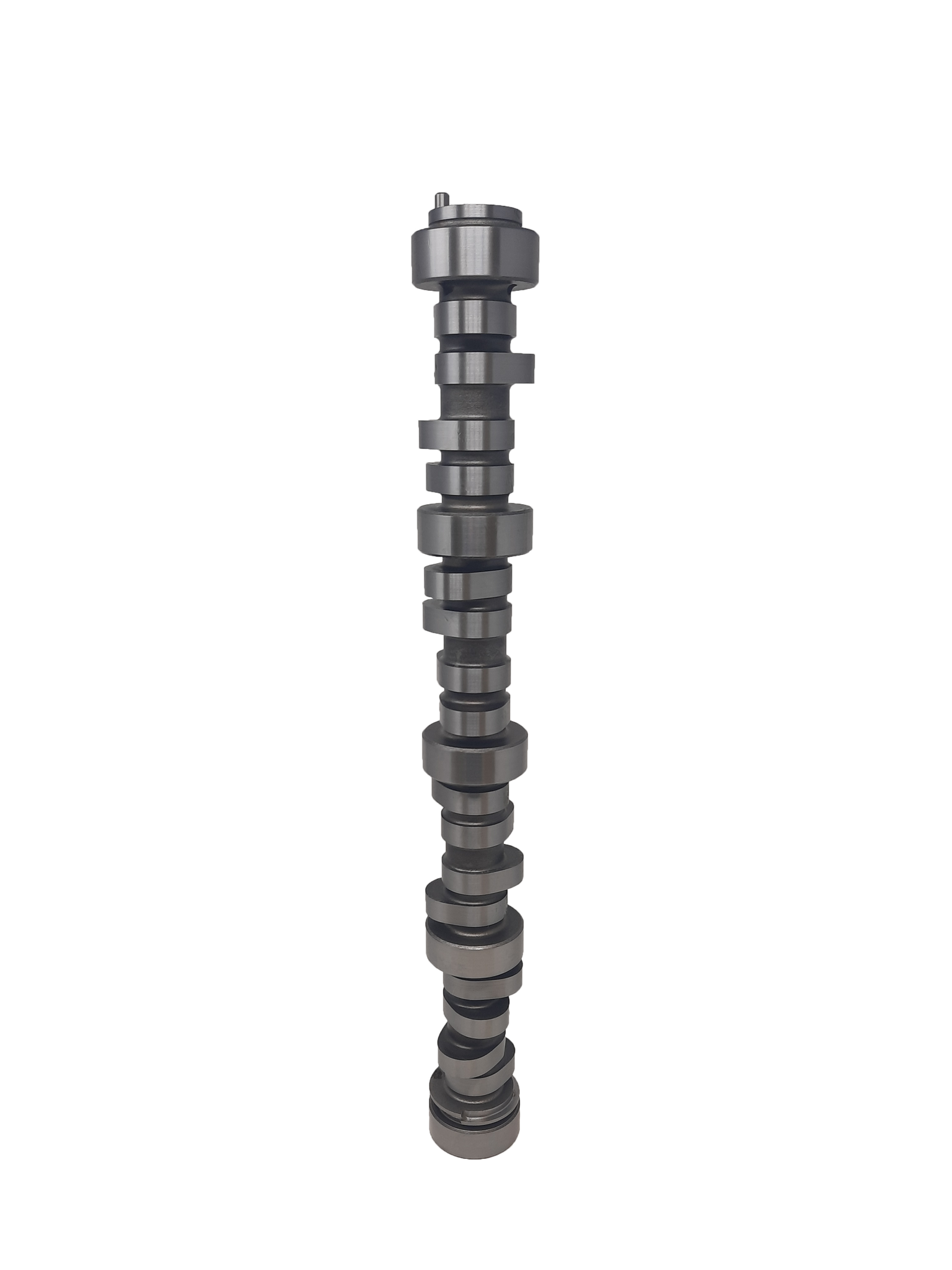

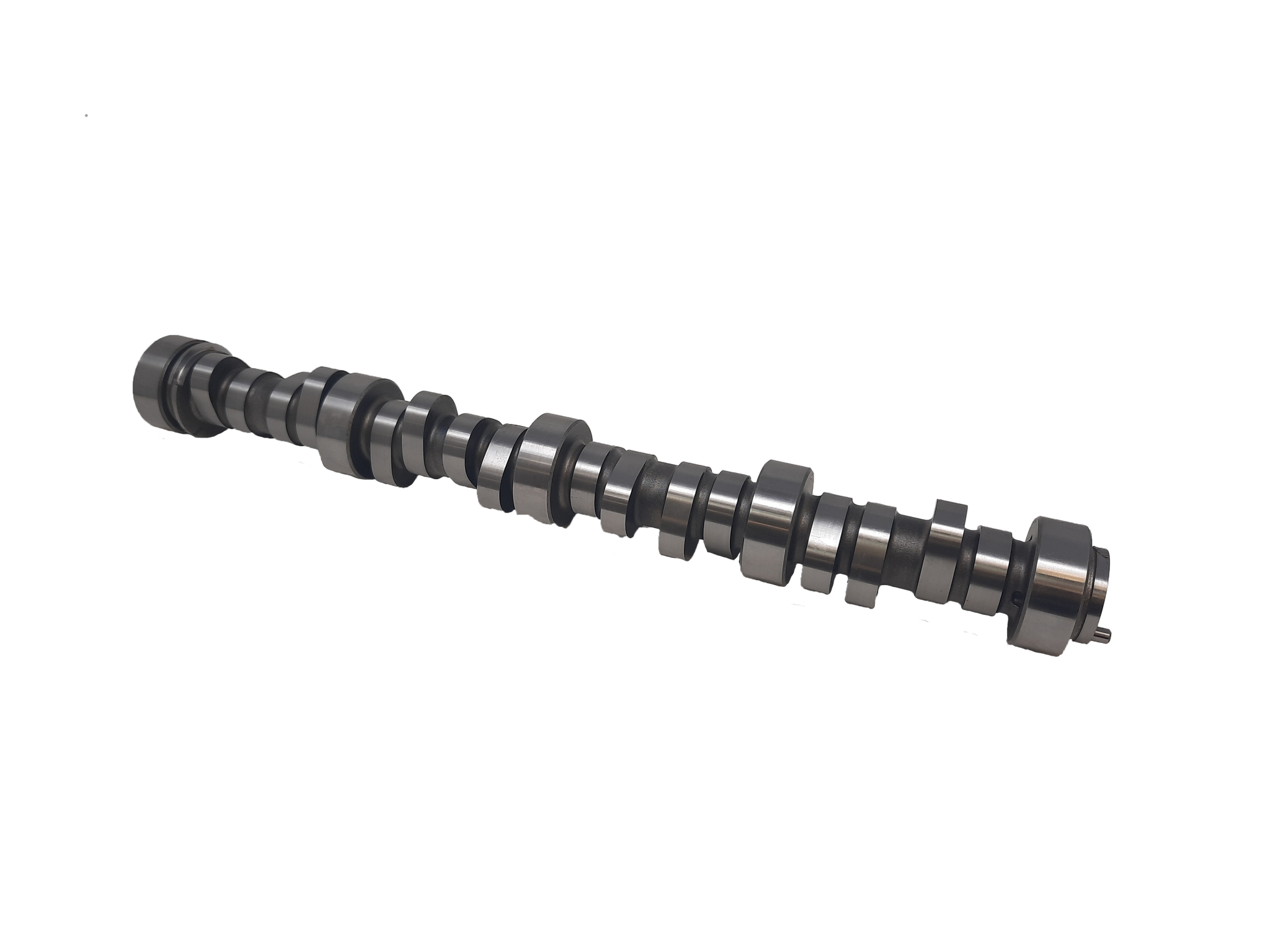

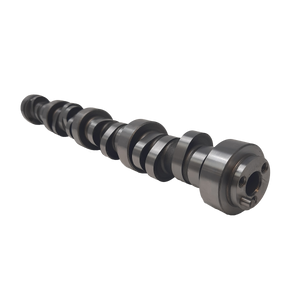

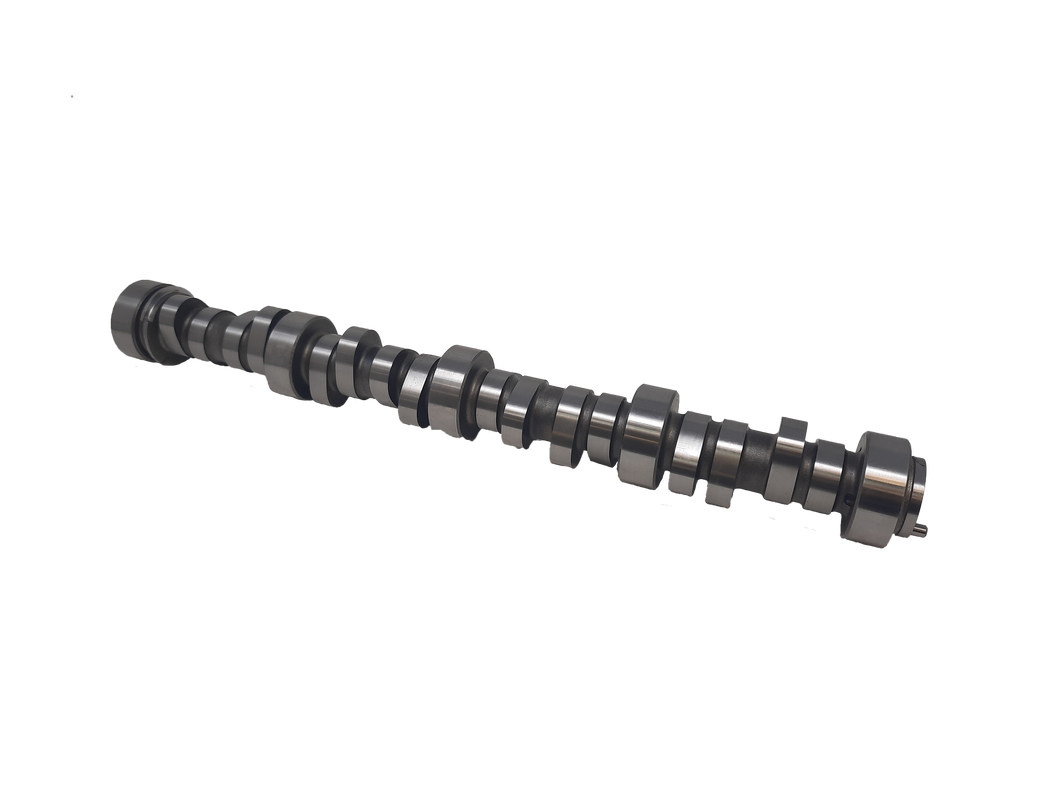

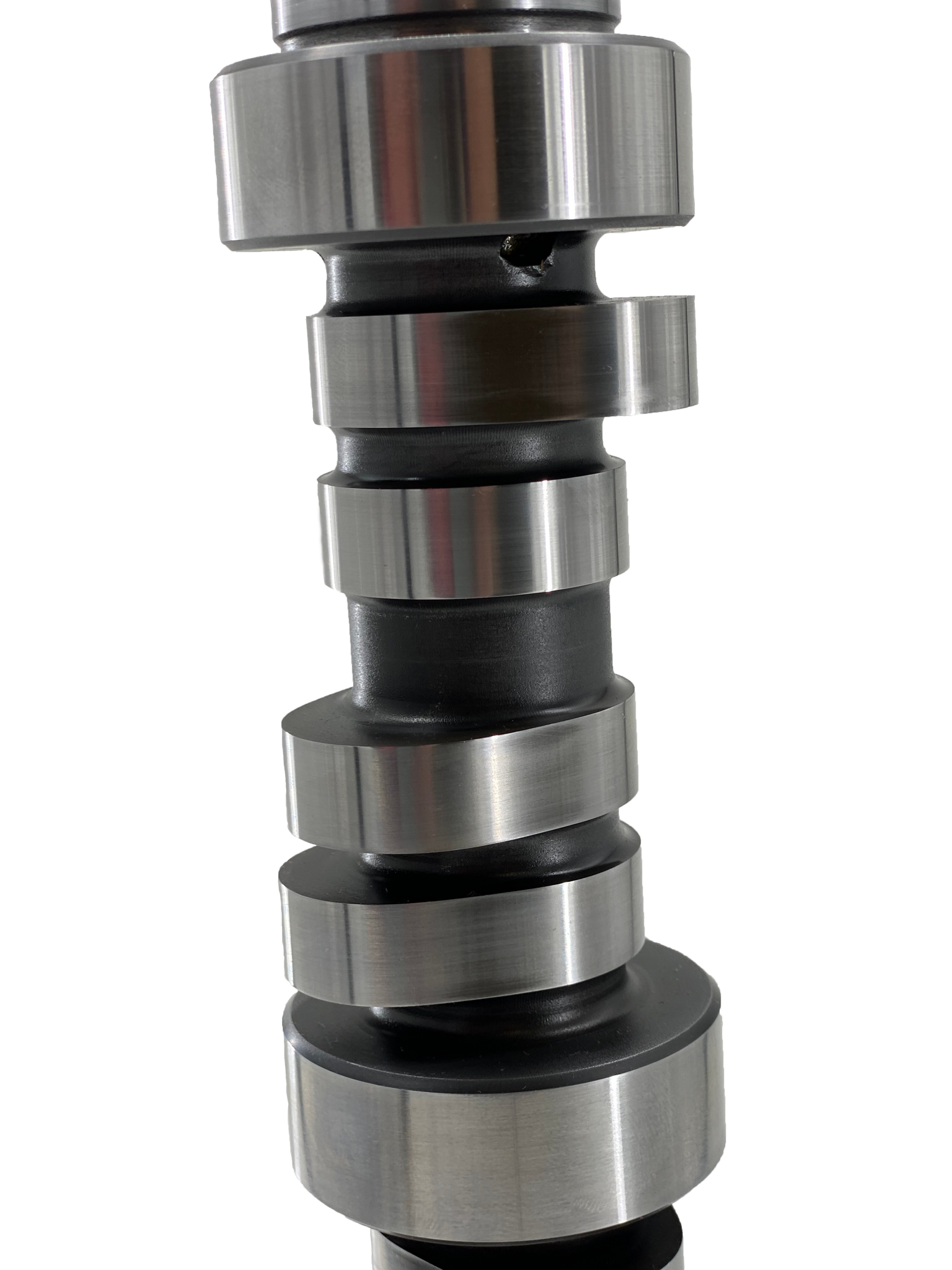

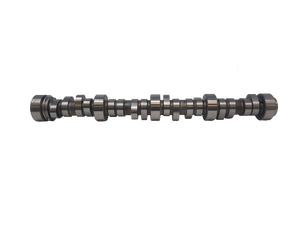

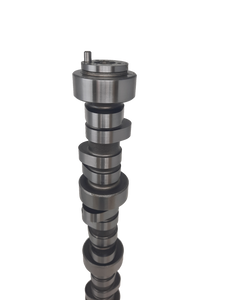

LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4
LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4

LS "LS7 SS" Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4

CS-LSX-100280
Regular price
$420.00
Your price
$420.00
Quantity must be 1 or more

LS Camshaft 0.639/0.639 Lift 248/260 Duration- Lobe Sep 114+4

Technical Specs

  • Nickname: "LS7 SS"
  • Engine Type: LS
  • Induction Type: Naturally Aspirated & Nitrous
  • Sound Type:  Aggressive Choppy Idle
  • Recommended Cubic Inch: LSX 454 HO
  • Application: Street Car/Road Race
  • Intake Lobe Duration @ 0.050: 248
  • Exhaust Lobe Duration @ 0.050: 260
  • Lobe Separation: 114+4
  • Direct Injection Fuel Lobe: N/A
  • Timing Gear Type: Three Bolt
  • Intake Lobe Lift: 0.355"
  • Exhaust Lobe Lift: 0.355"
  • Intake Valve Lift w/ 1.7 rocker: 0.604"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.604"
  • Intake Valve Lift w/ 1.8 rocker: 0.639"
  • Exhaust Valve Lift w/1.8 rocker: 0.639"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Dual Spring Kit
