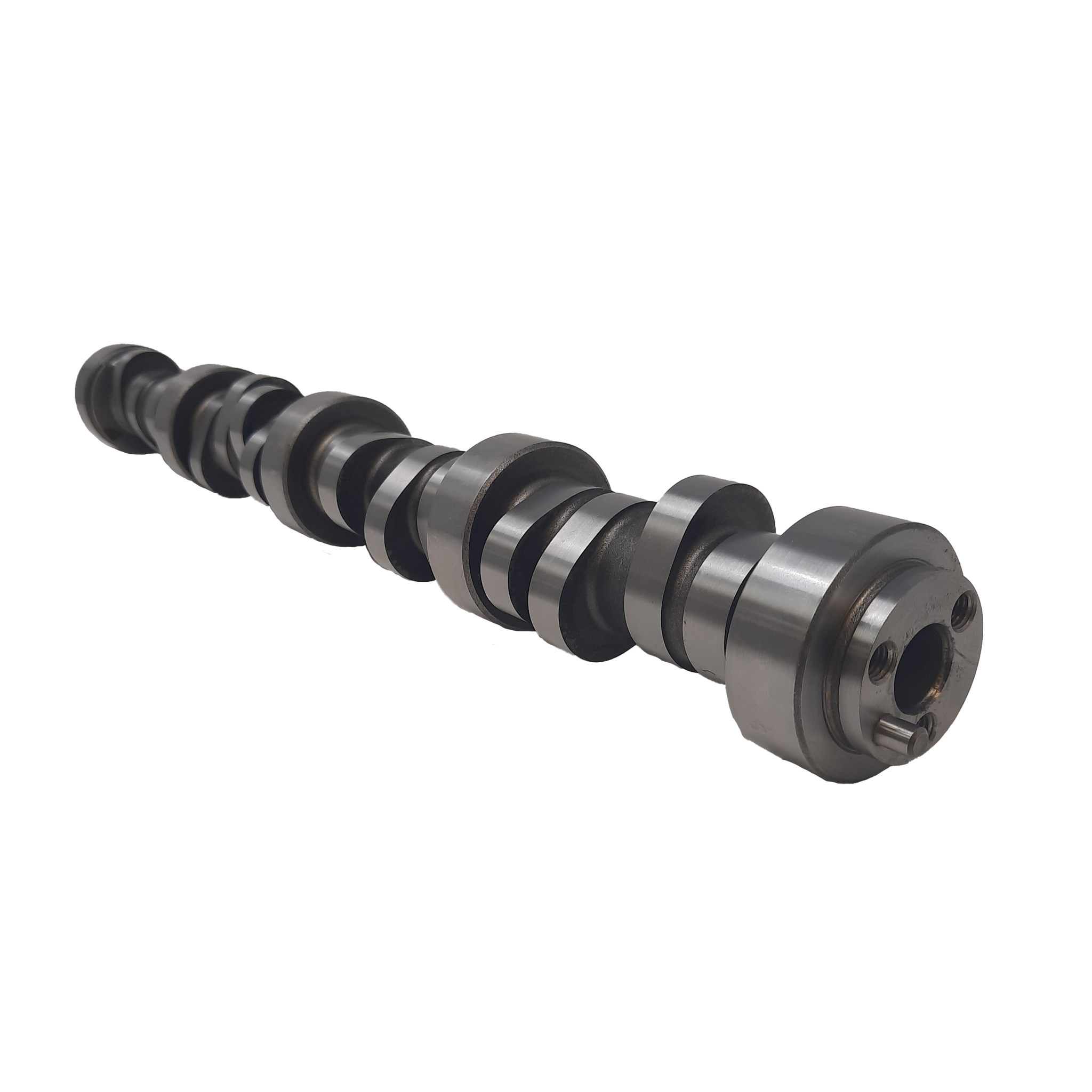

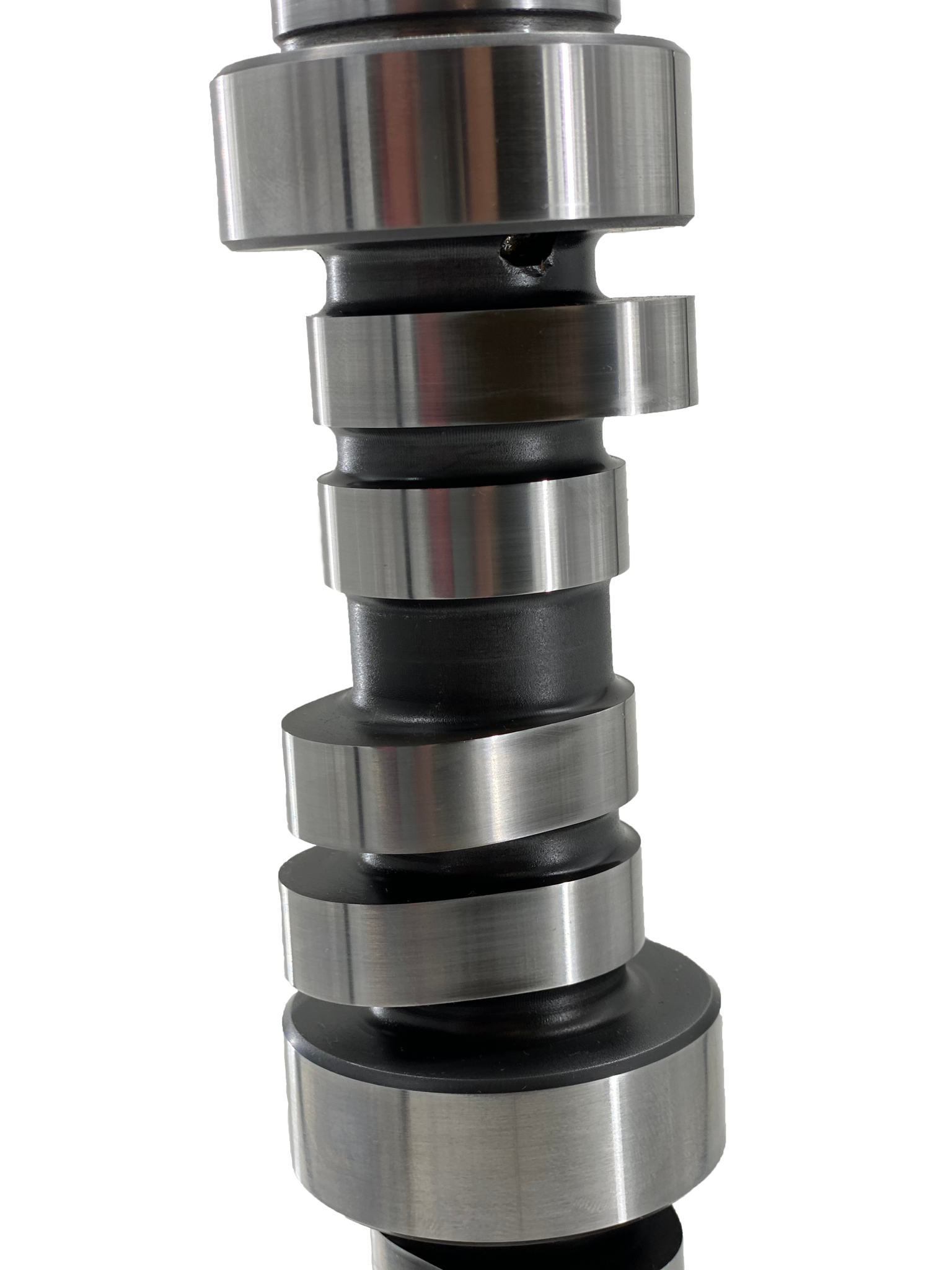

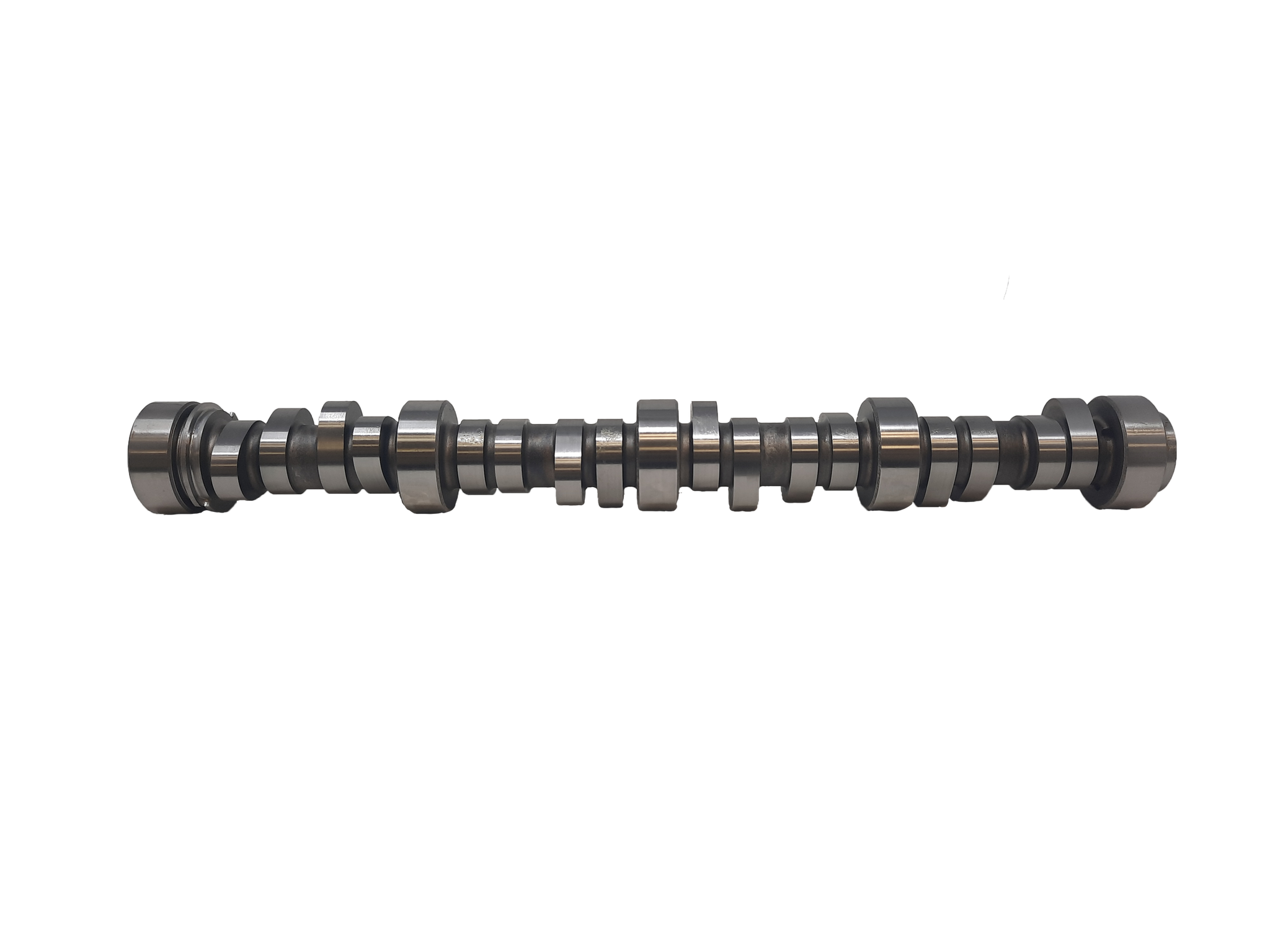

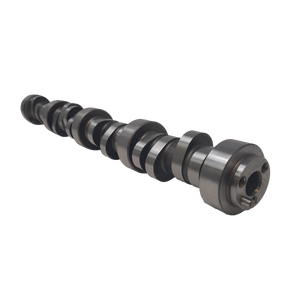

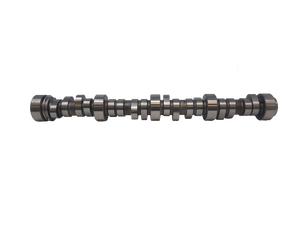

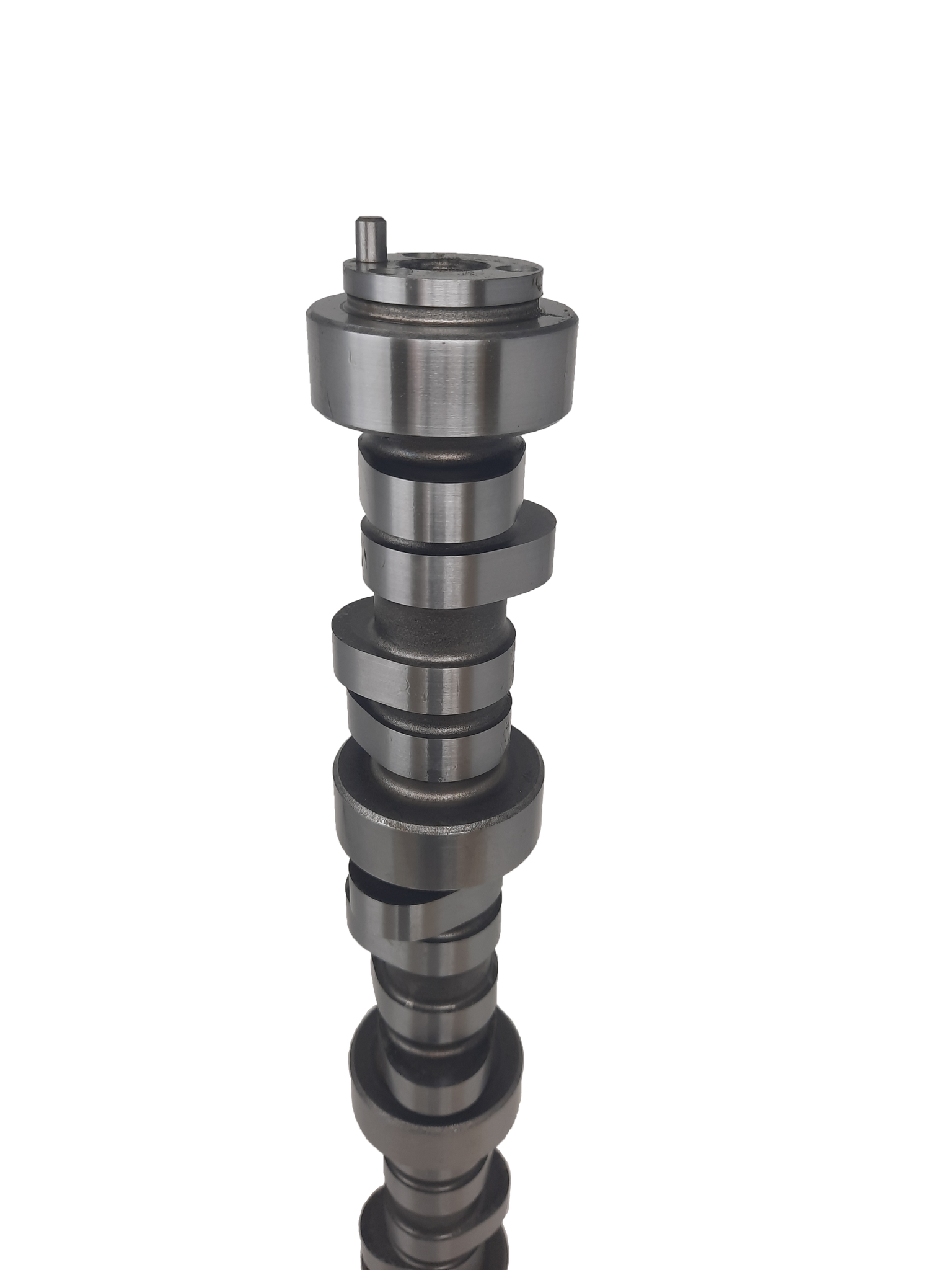

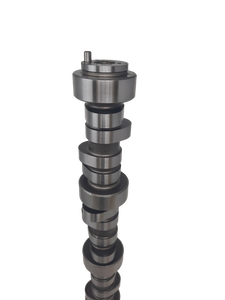

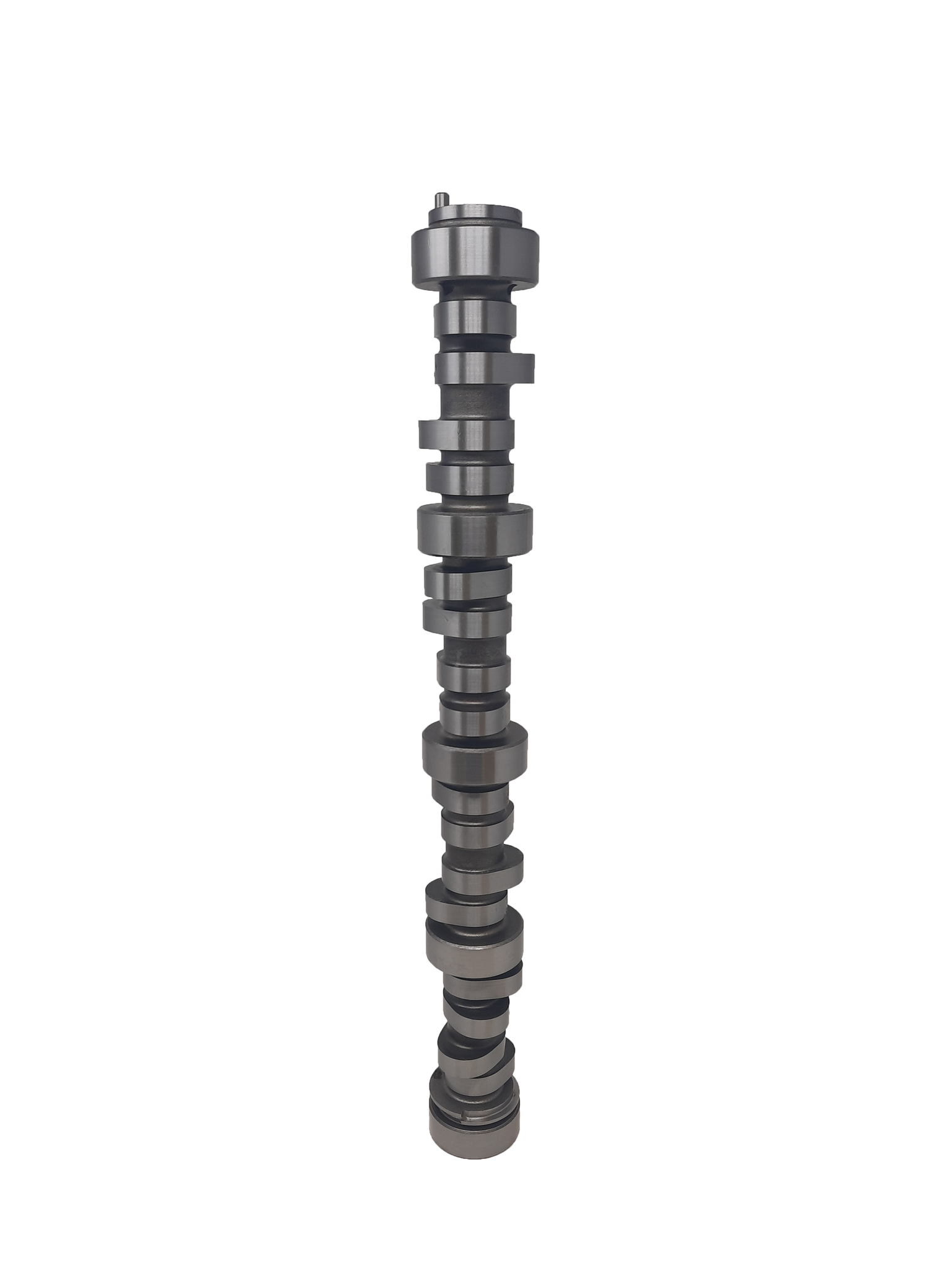

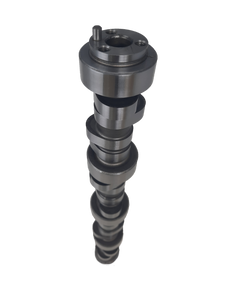

LS Camshaft 0.639/0.639 Lift 240/256 Duration- Lobe Sep 114+4
Technical Specs
- Nickname: LS3 Stroker SS
- Engine Type: LS
- Induction Type: Naturally Aspirated & Nitrous
- Sound Type: Aggressive Choppy Idle
- Recommended Cubic Inch: LS3 416 SS
- Application: Street Car/Road Race
- Intake Lobe Duration @ 0.050: 240
- Exhaust Lobe Duration @ 0.050: 256
- Lobe Separation: 114+4
- Direct Injection Fuel Lobe: N/A

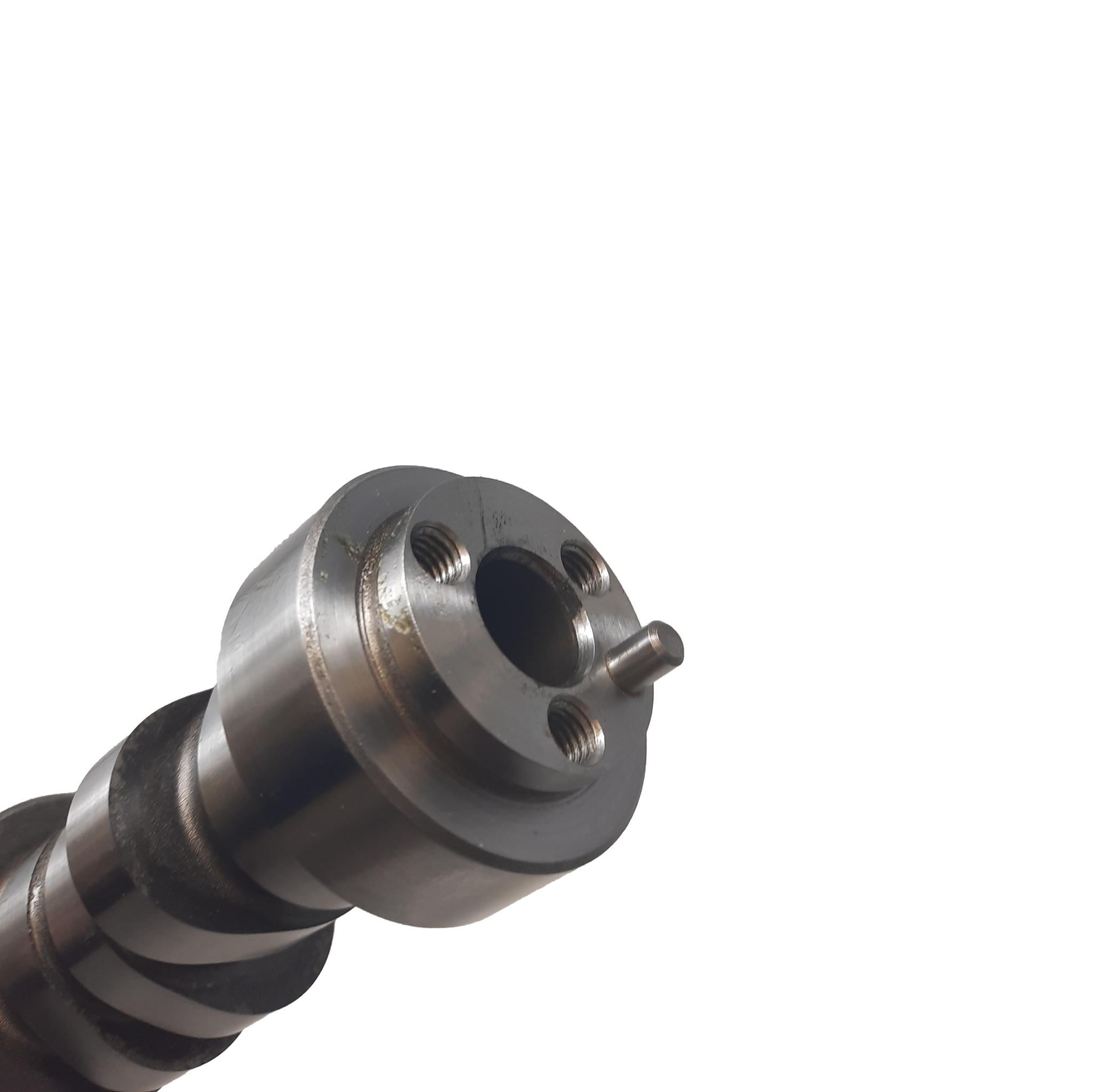

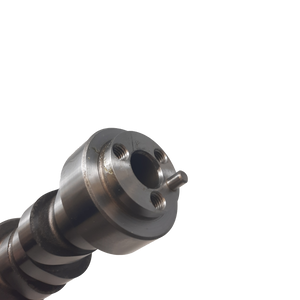

- Timing Gear Type: Three Bolt
- Intake Lobe Lift: 0.355"
- Exhaust Lobe Lift: 0.355"
- Intake Valve Lift w/ 1.7 rocker: 0.604"
- Exhaust Valve Lift w/ 1.7 rocker: 0.604"
- Intake Valve Lift w/ 1.8 rocker: 0.639"
- Exhaust Valve Lift w/1.8 rocker: 0.639"
- Rocker Arm Recommendation: Factory w/ Trunnion Upgrade
- Valve Spring Recommendations: Dual Spring Kit
