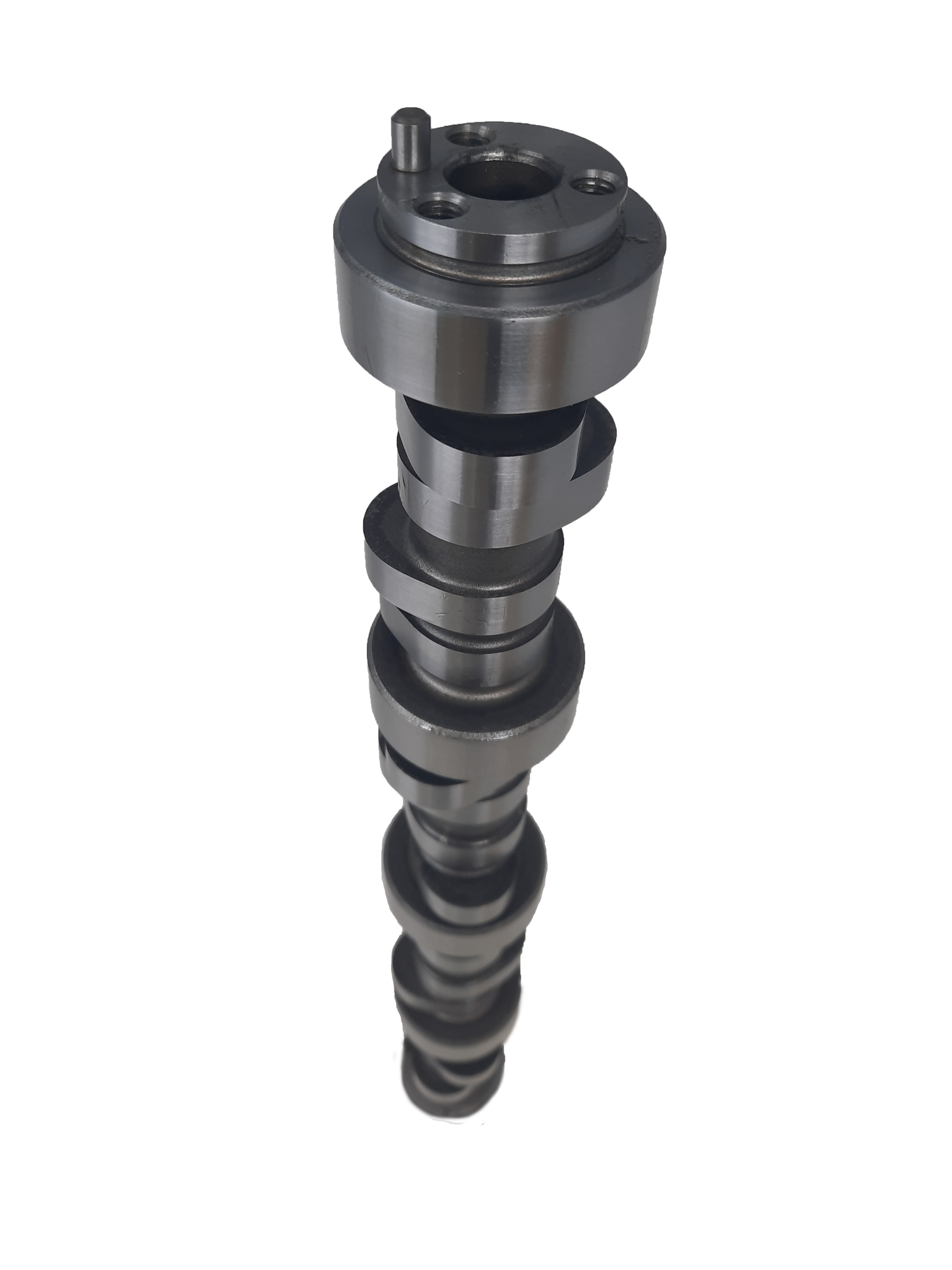

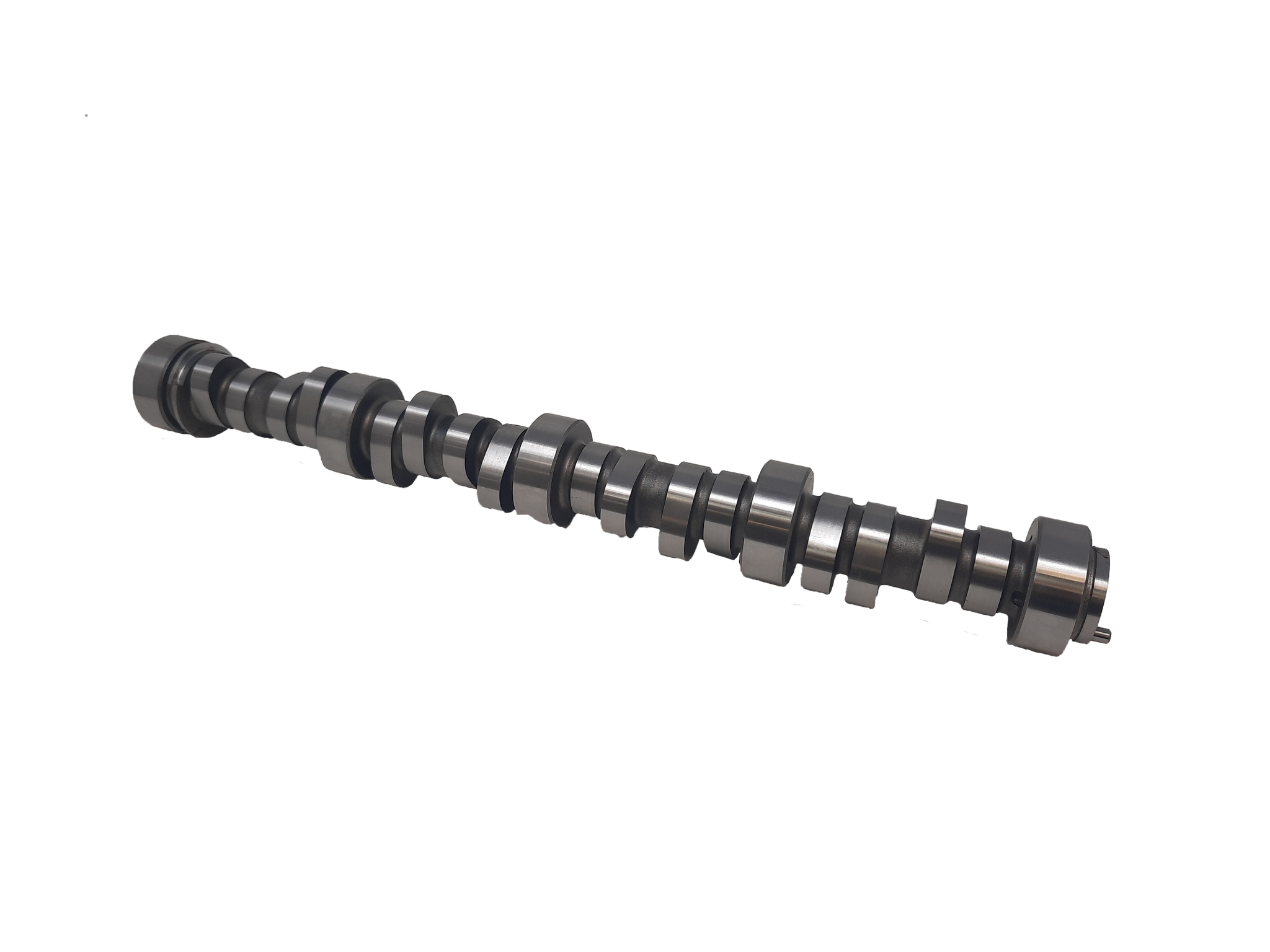

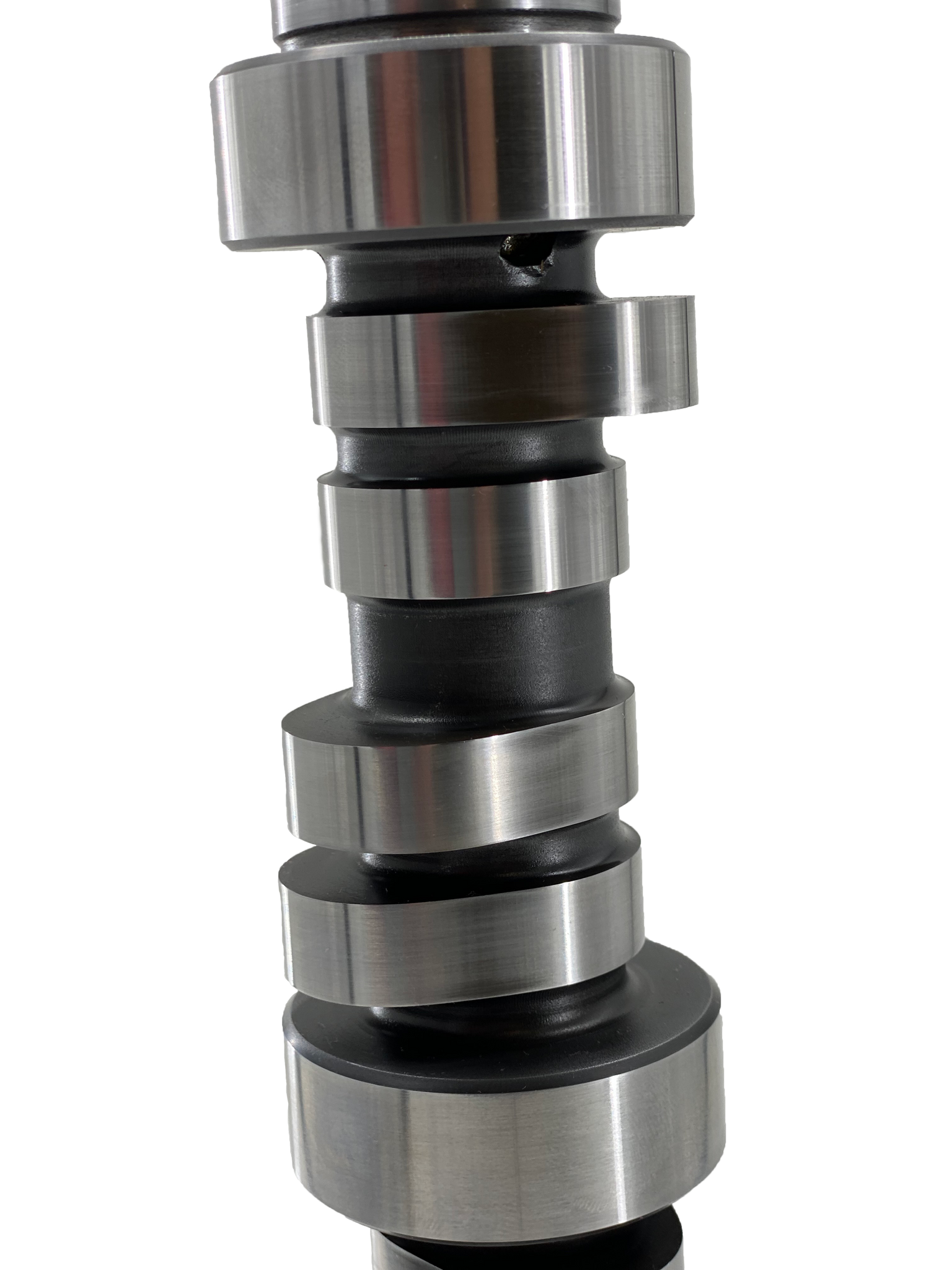

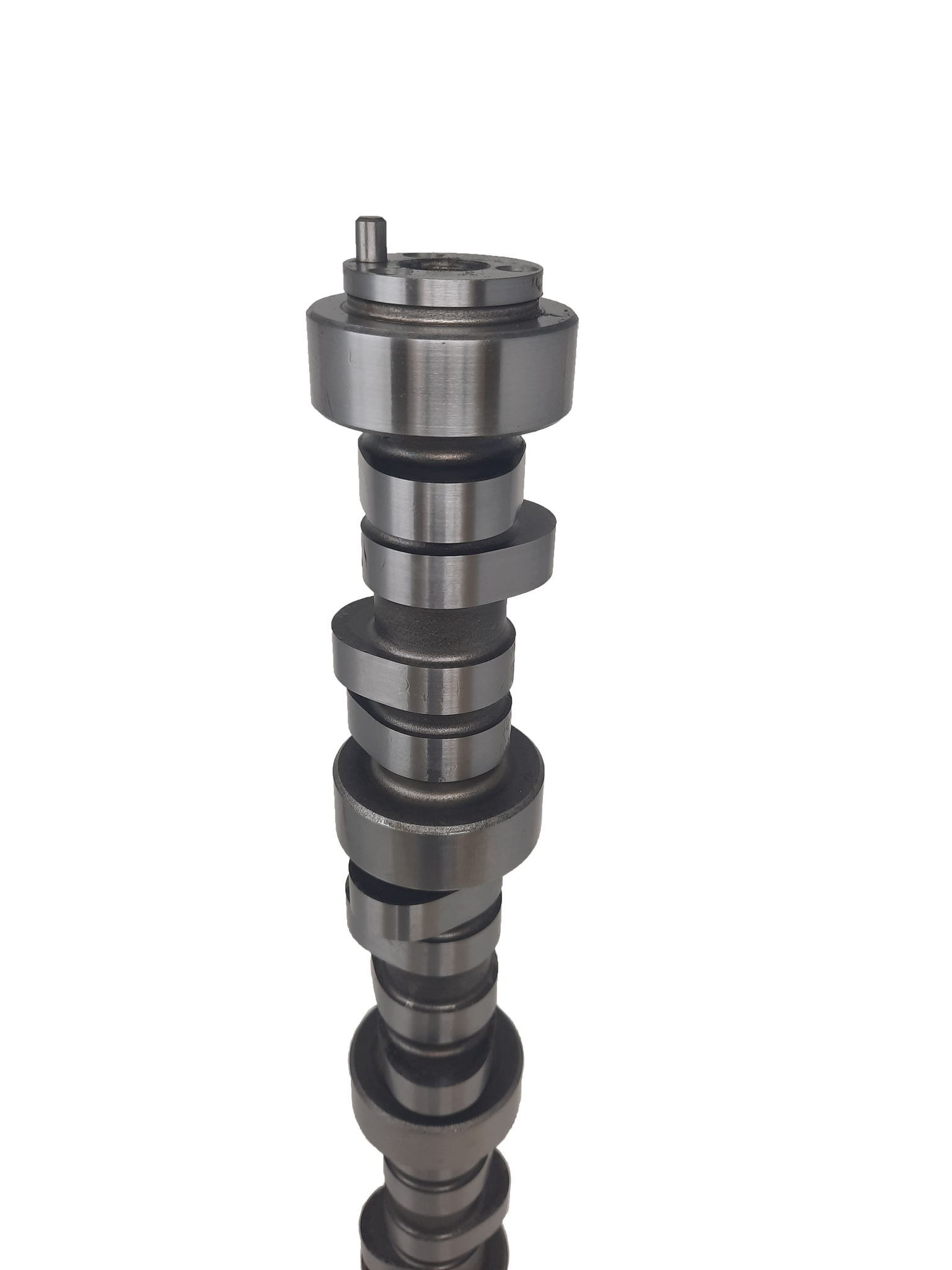

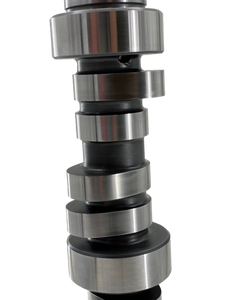

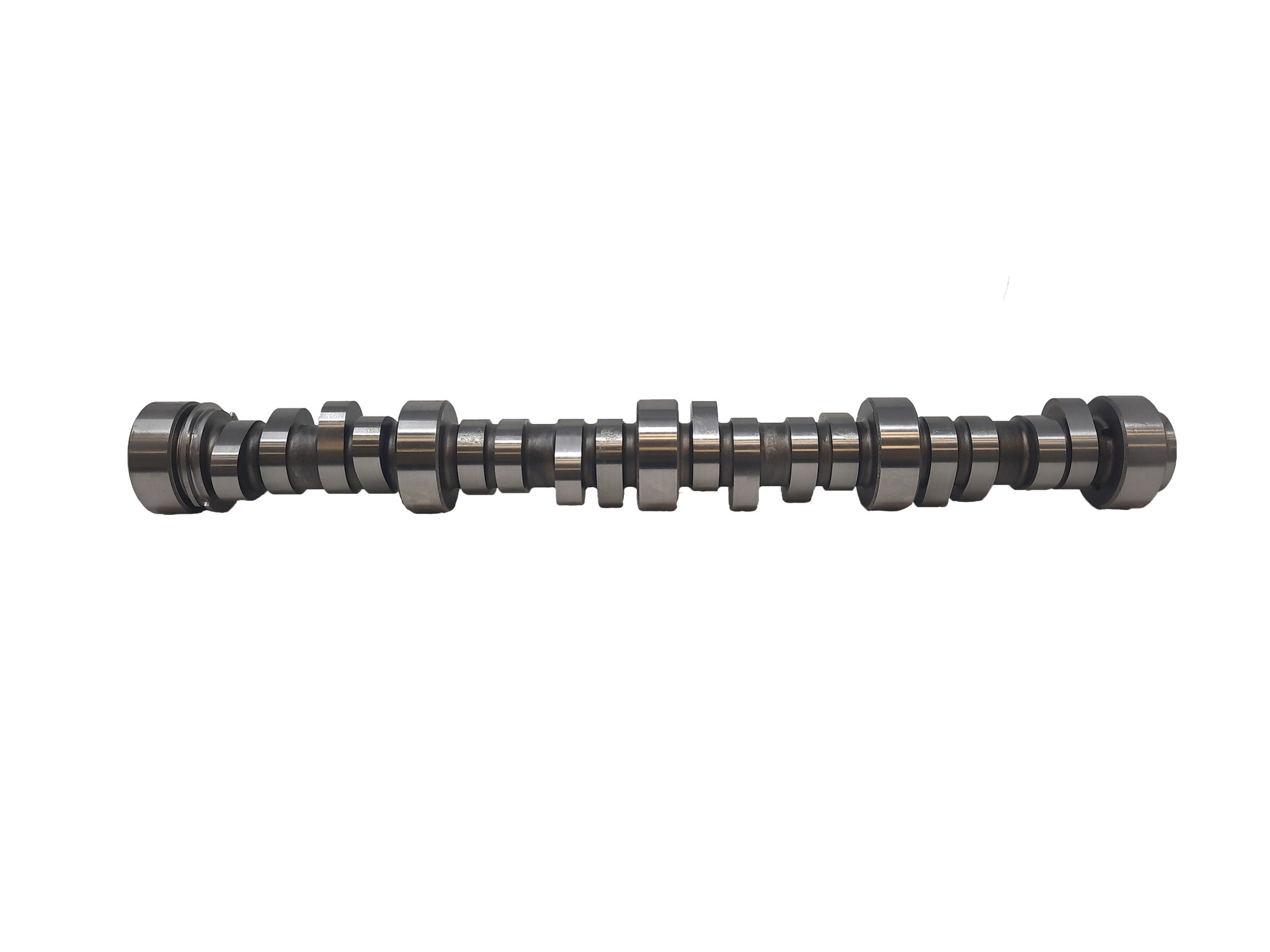

LS Camshaft 0.635/0.648 Lift 226/246 Duration- Lobe Sep 116+6
Technical Specs
- Nickname: "HO Supercharger"
- Engine Type: LS
- Induction Type: Supercharged
- Sound Type: Rough Choppy Idle
- Recommended Cubic Inch: LSX 427 FI
- Application: Super Charged Street Car
- Intake Lobe Duration @ 0.050: 226
- Exhaust Lobe Duration @ 0.050: 246
- Lobe Separation: 116+6
- Direct Injection Fuel Lobe: N/A
- Timing Gear Type: Three Bolt
- Intake Lobe Lift: 0.353"
- Exhaust Lobe Lift: 0.360"
- Intake Valve Lift w/ 1.7 rocker: 0.600"
- Exhaust Valve Lift w/ 1.7 rocker: 0.612"
- Intake Valve Lift w/ 1.8 rocker: 0.635"
- Exhaust Valve Lift w/1.8 rocker: 0.648"
- Rocker Arm Recommendation: Factory w/ Trunnion Upgrade
- Valve Spring Recommendations: Dual Spring Kit
