LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2
LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2

LS "IKNA-3Turbo" Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2

CS-LSX-100259
Regular price
$420.00
Your price
$420.00
Quantity must be 1 or more

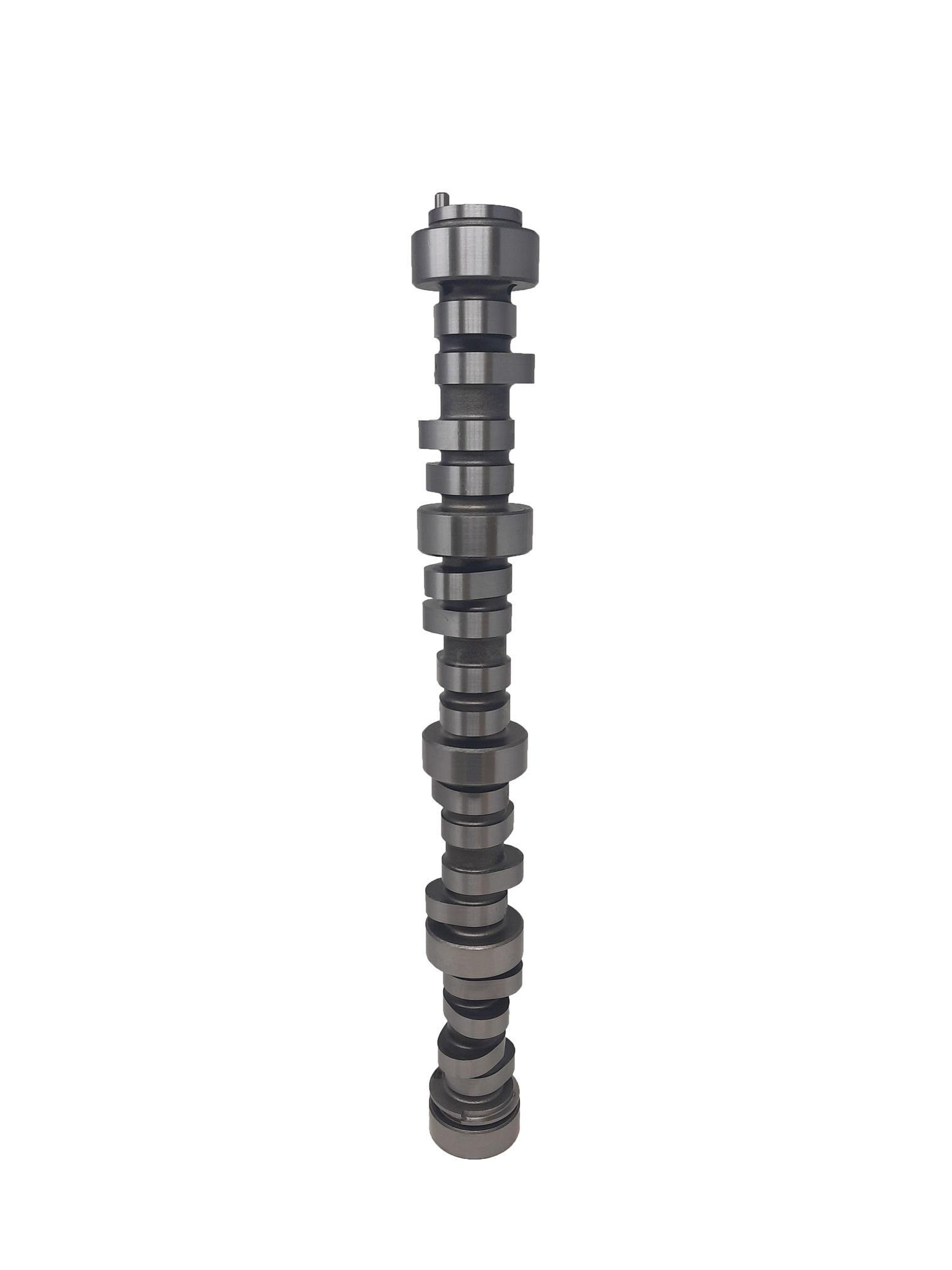

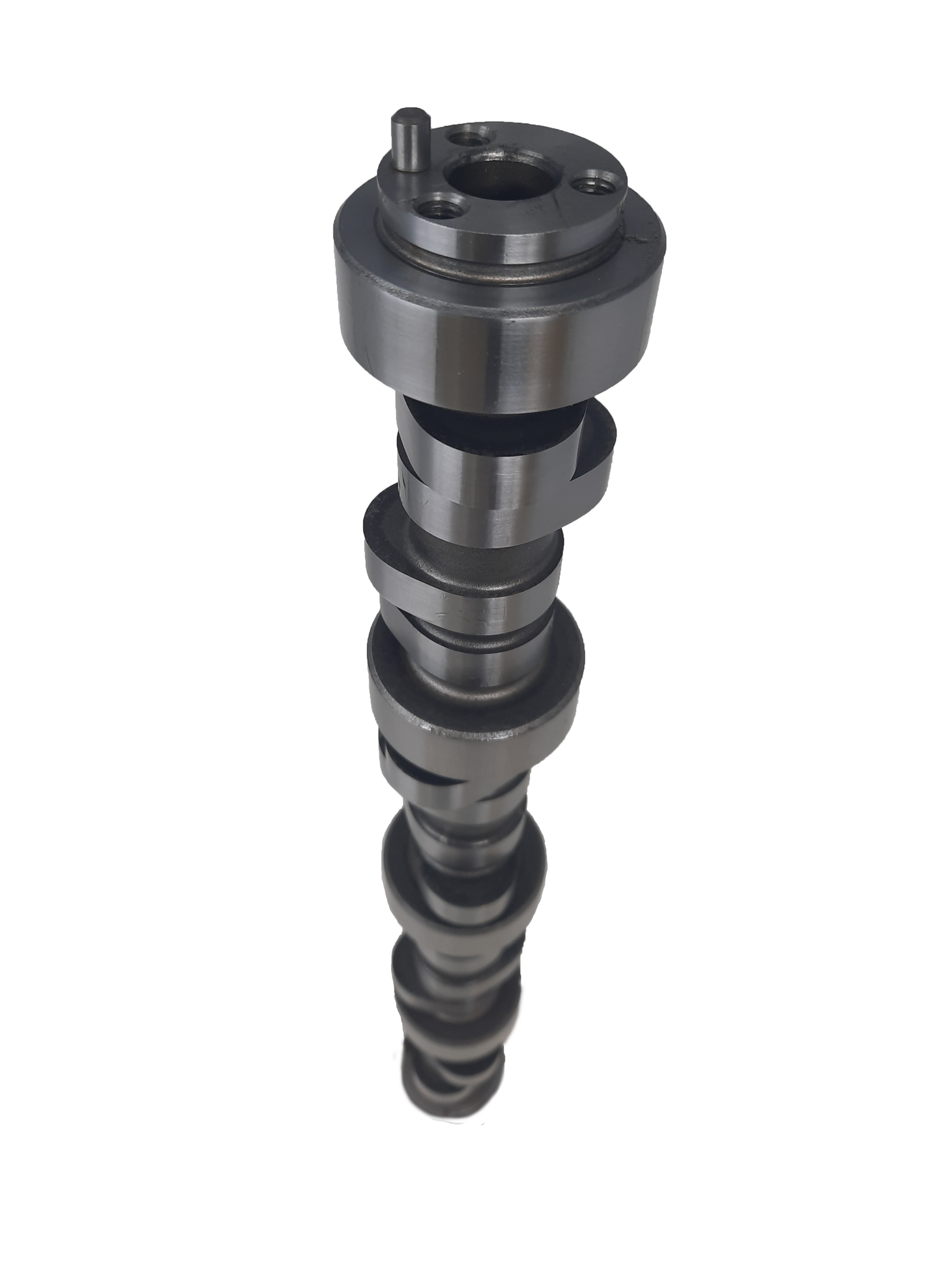

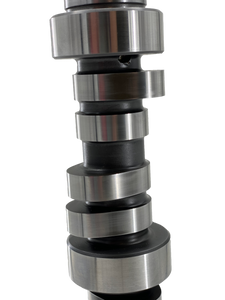

LS Camshaft 0.662/0.662 Lift 228/240 Duration- Lobe Sep 114+2

Technical Specs

  • Nickname: IKNA-3Turbo
  • Engine Type: LS
  • Induction Type: Boosted
  • Sound Type:  Mild Choppy Idle
  • Recommended Cubic Inch:  6.0/6.2
  • Application: Street Car/Boost
  • Intake Lobe Duration @ 0.050: 228
  • Exhaust Lobe Duration @ 0.050: 240
  • Lobe Separation: 114+2
  • Direct Injection Fuel Lobe: N/A
  • Timing Gear Type: Three Bolt
  • Intake Lobe Lift: 0.368"
  • Exhaust Lobe Lift: 0.368"
  • Intake Valve Lift w/ 1.7 rocker: 0.626"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.626"
  • Intake Valve Lift w/ 1.8 rocker: 0.662"
  • Exhaust Valve Lift w/1.8 rocker: 0.662"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Dual Spring Kit
