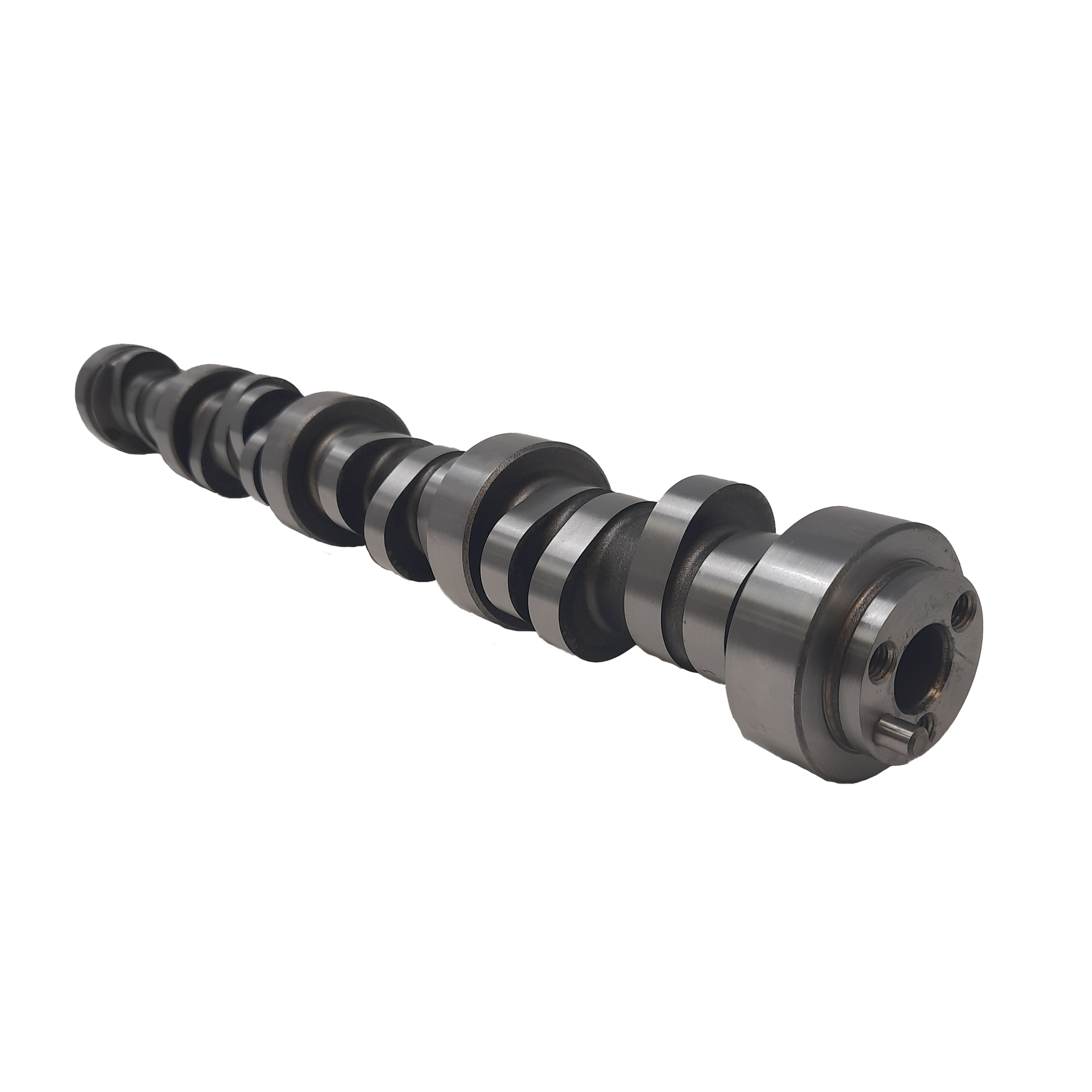

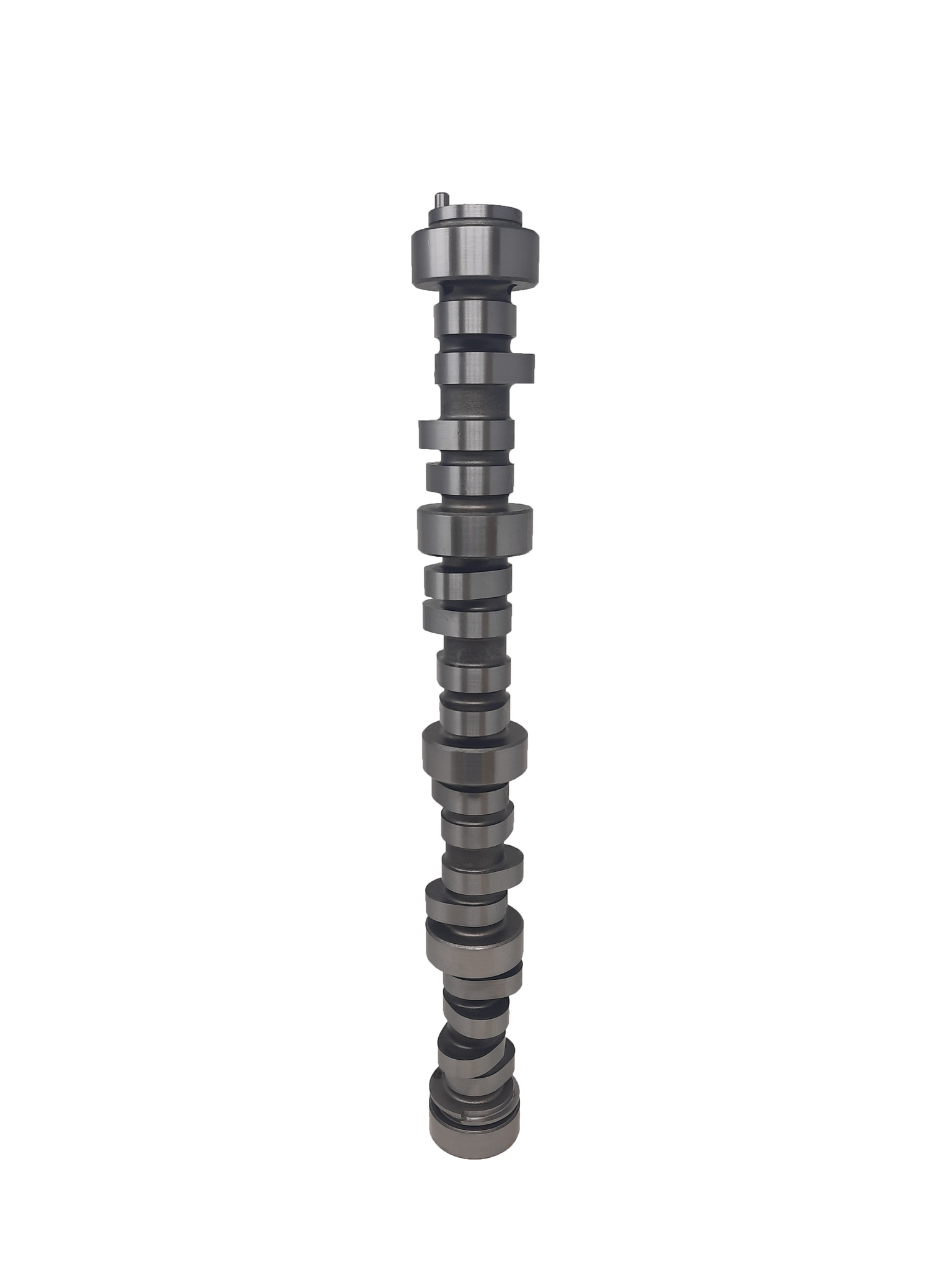

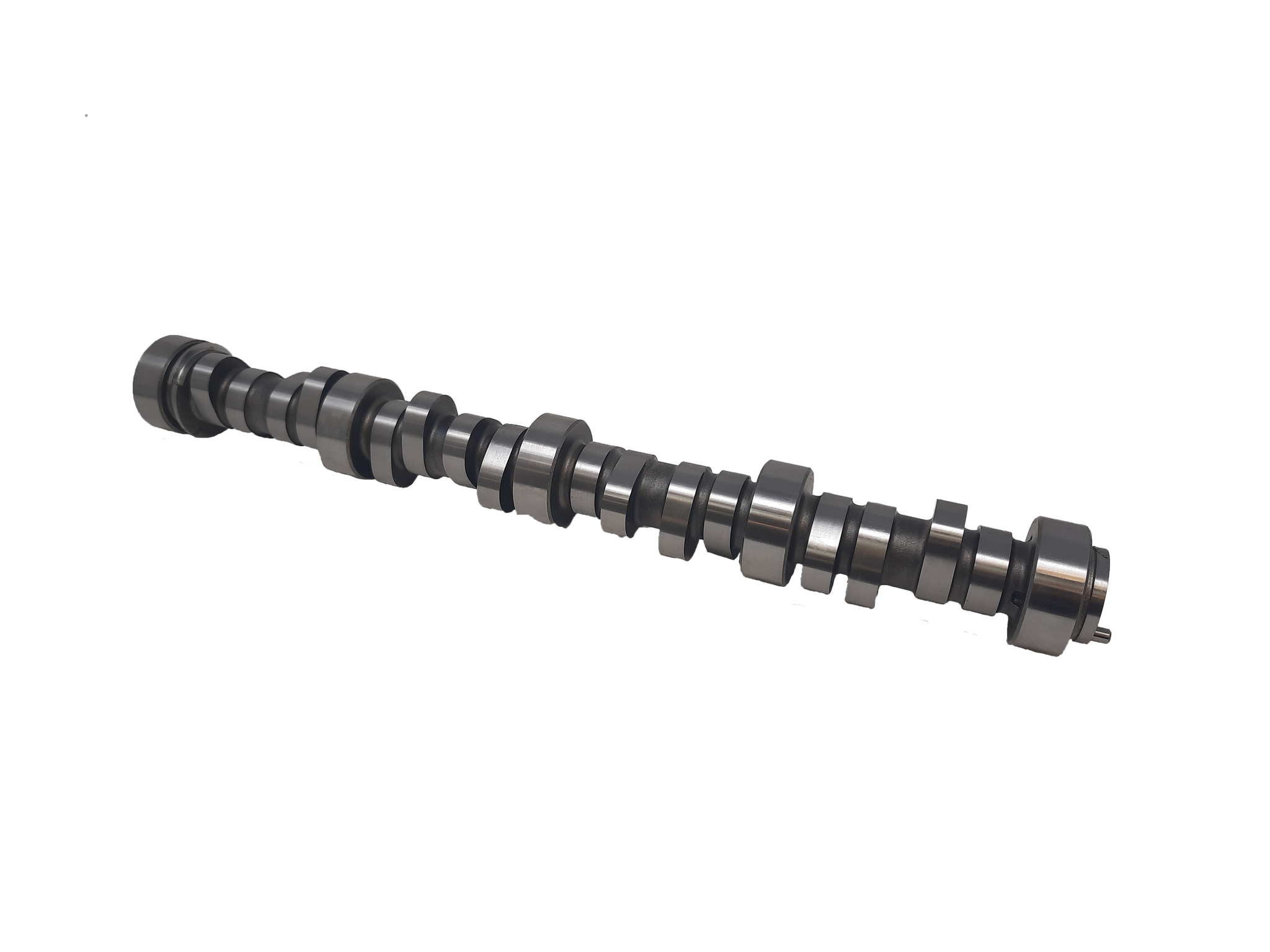

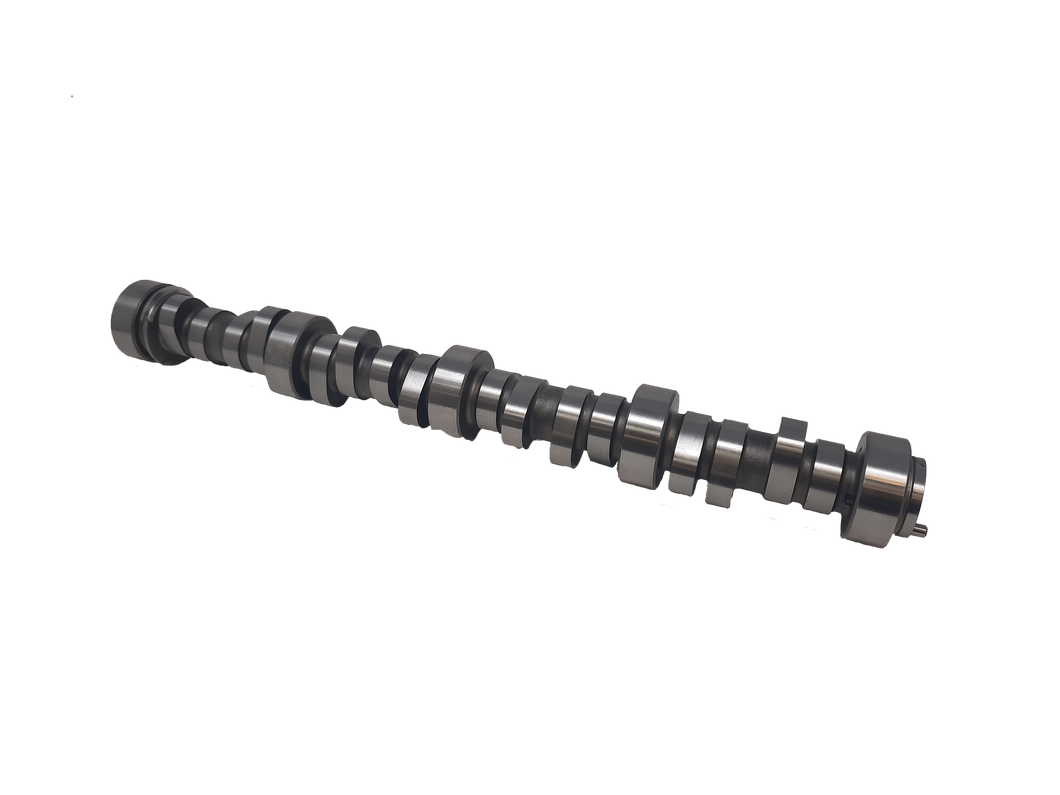

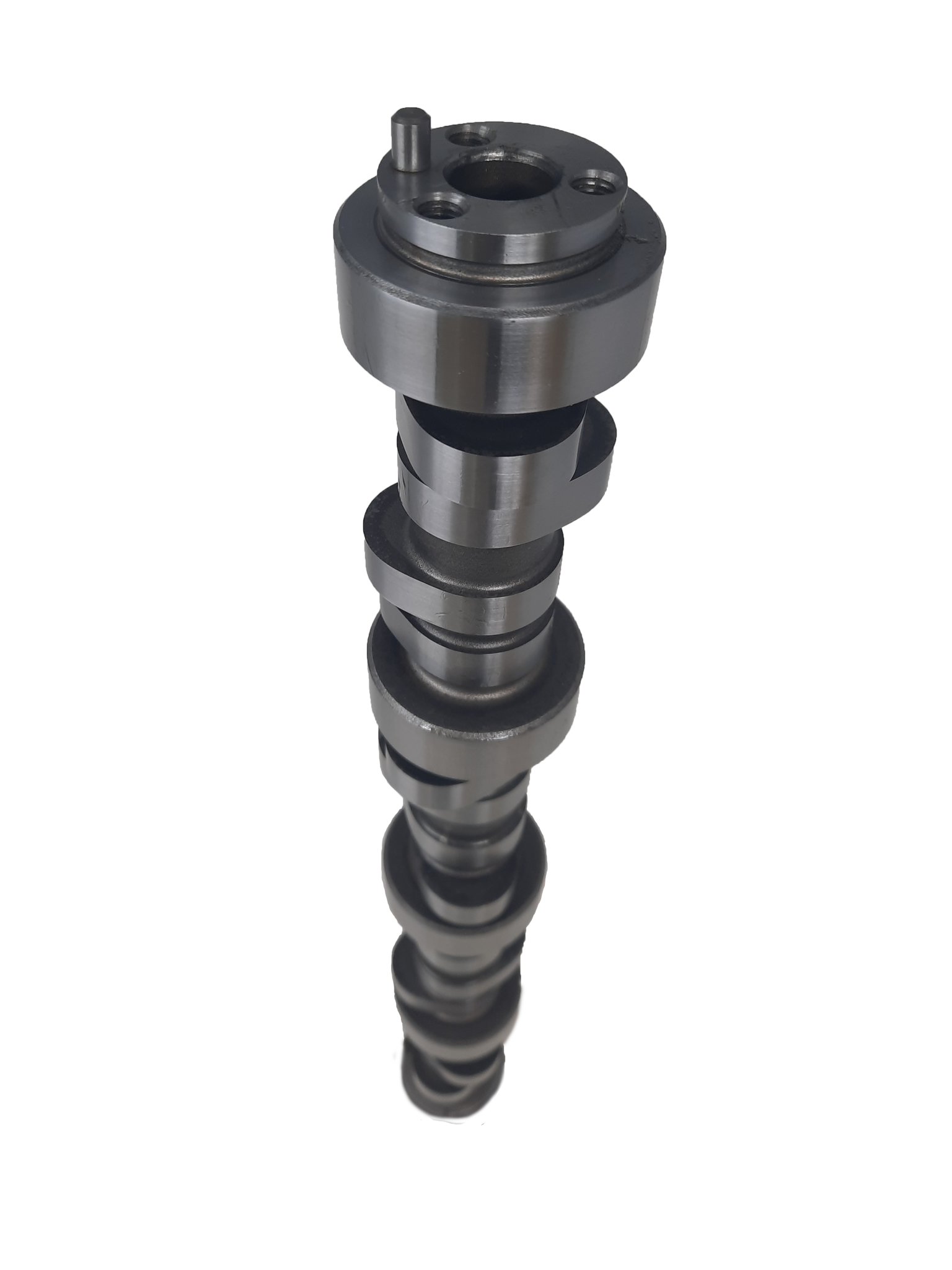

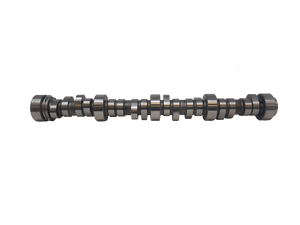

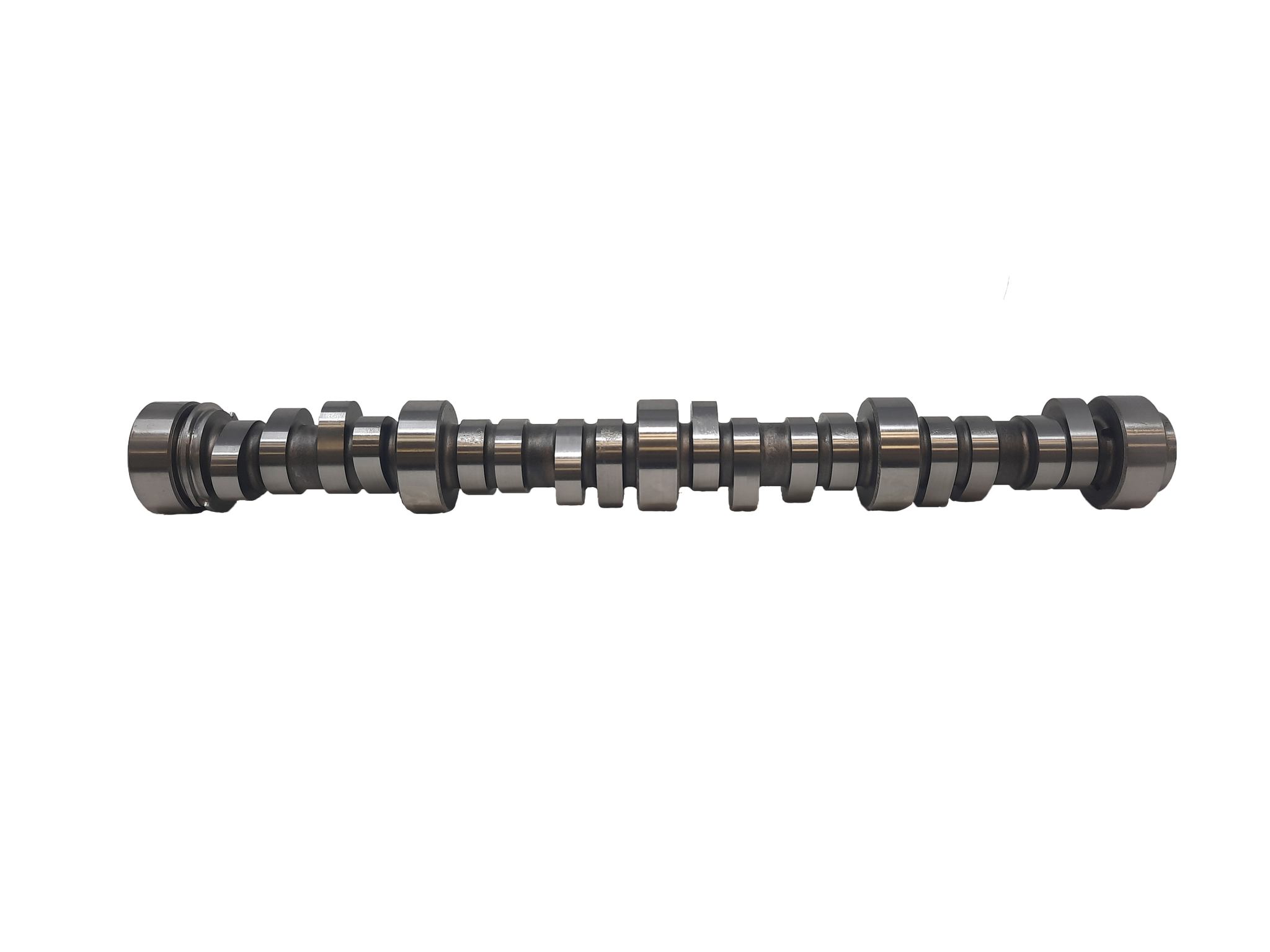

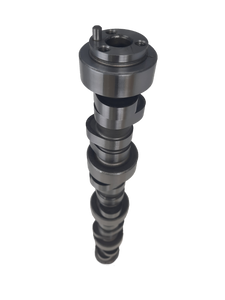

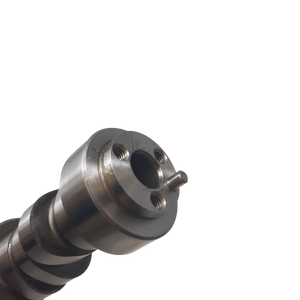

LS RRF Camshaft 0.652/0.652 Lift 250/264 Duration- Lobe Sep 114+4

Technical Specs

  • Nickname: "Robust Richard's Father"
  • Engine Type: LS
  • Induction Type: Naturally Aspirated & Nitrous
  • Sound Type: Aggressive Choppy Idle
  • Recommended Cubic Inch:  6.8+
  • Application: Race
  • Intake Lobe Duration @ 0.050: 250
  • Exhaust Lobe Duration @ 0.050: 264
  • Lobe Separation: 114+4
  • Direct Injection Fuel Lobe: N/A
  • Timing Gear Type: Three Bolt
  • Intake Lobe Lift: 0.362"
  • Exhaust Lobe Lift: 0.362"
  • Intake Valve Lift w/ 1.7 rocker: 0.615"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.615"
  • Intake Valve Lift w/ 1.8 rocker: 0.652"
  • Exhaust Valve Lift w/1.8 rocker: 0.652"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Dual Spring Kit
