CS-LSX-100253
Regular price
$420.00
Your price
$420.00
Quantity must be 1 or more

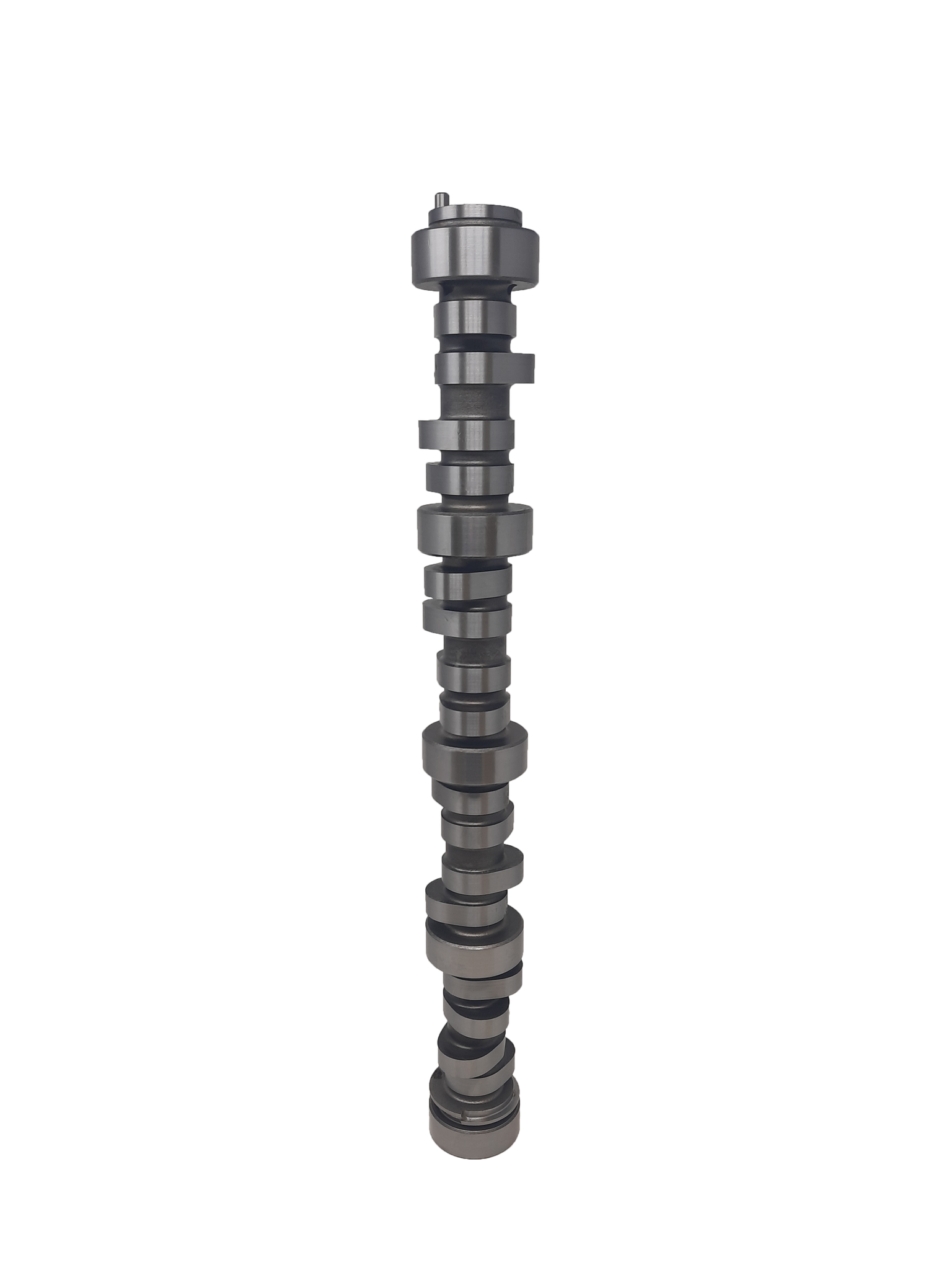

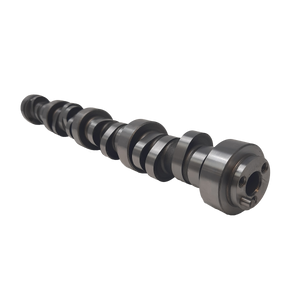

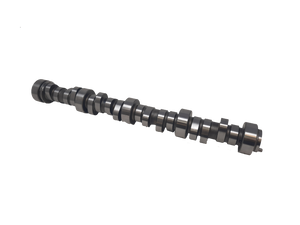

 LS Camshaft 0.635/0.635 Lift 214/222 Duration- Lobe Sep 111+3

Technical Specs

  • Nickname: LS 5.7 HO
  • Engine Type: LS
  • Induction Type: Naturally Aspirated
  • Sound Type:  Mild Choppy Idle
  • Recommended Engine Size:  5.3/5.7
  • Application: Street Car/Truck
  • Intake Lobe Duration @ 0.050: 214
  • Exhaust Lobe Duration @ 0.050: 222
  • Lobe Separation: 111+3
  • Direct Injection Fuel Lobe: N/A
  • Timing Gear Type: Three Bolt
  • Intake Lobe Lift: 0.535"
  • Exhaust Lobe Lift: 0.535"
  • Intake Valve Lift w/ 1.7 rocker: 0.600"
  • Exhaust Valve Lift w/ 1.7 rocker: 0.600"
  • Intake Valve Lift w/ 1.8 rocker: 0.635"
  • Exhaust Valve Lift w/1.8 rocker: 0.635"
  • Rocker Arm Recommendation:  Factory w/ Trunnion Upgrade
  • Valve Spring Recommendations: Dual Spring Kit
